Horizontal Screen Frame Dryer – Screen Drying Cabinet
Elevate your screen printing quality and efficiency with the PT-G1 Horizontal Screen Frame Dryer, specifically engineered to meet the demanding needs of Bangladesh’s vibrant textile and garment industry.
- Model name: PT-G1
- Payment Method: L/C at Sight or T/T in Advance
- Min. Order: 01
- Warranty: 12 Months
- Packaging: Standard Export Wooden Case
Share:
Request a quote for
Request a quote for
Horizontal Screen Frame Dryer – Screen Drying Cabinet
Elevate your screen printing quality and efficiency with the PT-G1 Horizontal Screen Frame Dryer, specifically engineered to meet the demanding needs of Bangladesh’s vibrant textile and garment industry.
- Model name: PT-G1
- Payment Method: L/C at Sight or T/T in Advance
- Min. Order: 01
- Warranty: 12 Months
- Packaging: Standard Export Wooden Case
Share:
Product Info

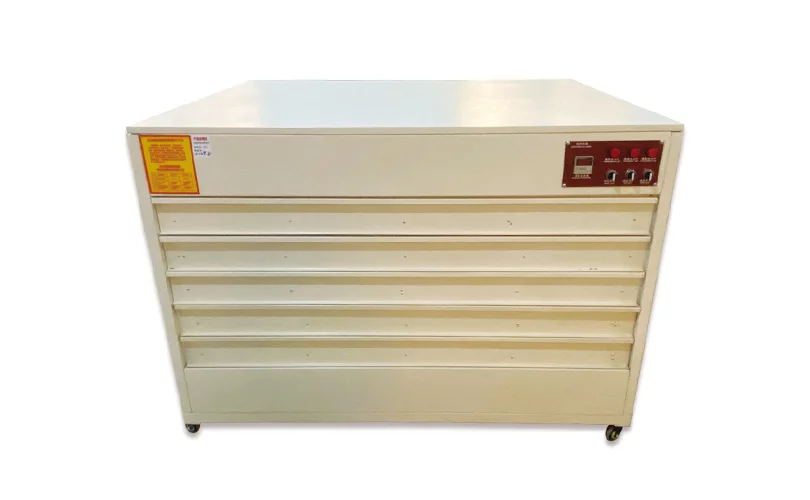

Horizontal Screen Frame Dryer

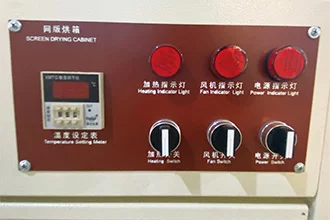

This advanced horizontal screen frame dryer offers precise temperature control, automated operation, and superior drying consistency, ensuring perfectly prepared screens for flawless prints every time. Experience reduced energy consumption and enhanced productivity with this essential screen dryer solution.Product Specification
| Model | Machine Dimension(mm) | Max Screen Area（mm） | Number of Plate | Temp range | Voltage | Power | G.W. |
| PT-G101 | 1200*900*900 | 800*1000 | 5 | Room temp.-50°C | 220 | 3.2KW | 100 |
| PT-G102 | 1500*1200*900 | 1000*1300 | 5 | Room temp.-50°C | 220 | 4KW | 130 |
| PT-G103 | 750*600*350 | 640*530 | 4 | Room temp.-50°C | 220 | 1.5KW | 70 |
Advantage & Features
- The bottom-heating pipe design works with a centrifugal fan to circulate hot air evenly. Its unique airflow system ensures fast, uniform heating—drying screen frames efficiently without causing damage.
- Features a smart drawer-style design with excellent sealing. Rail bearings allow each layer to slide in and out smoothly and effortlessly, making operation easy and user-friendly.
- Custom-built options are available to match your specific size and requirements.
Applications
- Garment Printing: Ideal for drying screen frames used in the production of T-shirts, polo shirts, hoodies, and other apparel.
- Fabric Printing: Essential for preparing screens for textile rolls, banners, and various fabric materials.
- Label Printing: Ensures crisp and clear prints for garment labels, care tags, and other textile-based labels.
- General Screen Printing Workshops: Suitable for any commercial screen printing operation requiring consistent, high-quality screen drying.
- Educational Institutions & Training Centers: Provides a professional and safe environment for teaching screen printing techniques.
Specification
Horizontal Screen Frame Dryer
This advanced horizontal screen frame dryer offers precise temperature control, automated operation, and superior drying consistency, ensuring perfectly prepared screens for flawless prints every time. Experience reduced energy consumption and enhanced productivity with this essential screen dryer solution.Product Specification
| Model | Machine Dimension(mm) | Max Screen Area（mm） | Number of Plate | Temp range | Voltage | Power | G.W. |
| PT-G101 | 1200*900*900 | 800*1000 | 5 | Room temp.-50°C | 220 | 3.2KW | 100 |
| PT-G102 | 1500*1200*900 | 1000*1300 | 5 | Room temp.-50°C | 220 | 4KW | 130 |
| PT-G103 | 750*600*350 | 640*530 | 4 | Room temp.-50°C | 220 | 1.5KW | 70 |
Advantage & Features
Advantage & Features
- The bottom-heating pipe design works with a centrifugal fan to circulate hot air evenly. Its unique airflow system ensures fast, uniform heating—drying screen frames efficiently without causing damage.
- Features a smart drawer-style design with excellent sealing. Rail bearings allow each layer to slide in and out smoothly and effortlessly, making operation easy and user-friendly.
- Custom-built options are available to match your specific size and requirements.
Applications
Applications
- Garment Printing: Ideal for drying screen frames used in the production of T-shirts, polo shirts, hoodies, and other apparel.
- Fabric Printing: Essential for preparing screens for textile rolls, banners, and various fabric materials.
- Label Printing: Ensures crisp and clear prints for garment labels, care tags, and other textile-based labels.
- General Screen Printing Workshops: Suitable for any commercial screen printing operation requiring consistent, high-quality screen drying.
- Educational Institutions & Training Centers: Provides a professional and safe environment for teaching screen printing techniques.
Product Comparison
Product Comparison Table with Similar Products
| Feature | PT-G1 Horizontal Screen Dryer | INTSUPERMAI 800W 4 Layer Silk Screen Drying Machine |
| Type | Automatic Horizontal Screen Frame Dryer | Manual/Semi-auto Vertical Screen Drying Cabinet |
| Max Screen Area (Typical) | Up to 1000 x 1300 mm (PT-G101 model) | Up to 62 x 58 cm (25×23 inches) |
| Power Consumption | 3.2 KW (PT-G101) | 0.8 KW (800W) |
| Temperature Range | Room temp to 50°C (122°F) | Up to 52°C (126°F) |
| Air Circulation | Centrifugal fan for air recycling | Silent axial flow fan |
| Drawer/Loading | Smooth drawers on rails with bearings | Multi-layer vertical loading |
| Design Philosophy | Industrial-grade, high-capacity, precise control | Compact, entry-level/small workshop |
| Target Application | Mid to large-scale professional screen printing operations | Small workshops, hobbyists, or backup for smaller screens |
| Key Advantage | Larger capacity, robust build, industrial precision, higher throughput | More affordable, compact size |
Product Warranty
Warranty Period: 12 Months.
Warranty Terms: The Horizontal Screen Frame Dryer comes with a service warranty that covers its main electrical components, drying control unit, and structural drying trays. Some items—like heating tubes, insulation mats, and rubber seals—naturally wear out over time and are considered consumables, so they aren’t covered under the warranty. If any covered part stops working during the warranty period, our technicians will handle the repair or replacement, but customers will need to purchase any necessary spare parts. Please note that customers are responsible for all shipping costs when sending or receiving parts or equipment.
Technical & After Sales Service
To help you get the best results, we provide robust after-sales support, including:
- On-site installation, setup, and training to ensure smooth integration into your workflow.
- Field servicing and repair visits upon request for issues that require hands-on attention.
- Dedicated customer service channels, including 24/7 phone support for quick resolution of queries or concerns.
- Regional technical assistance (where available) to reduce machine downtime and maintain productivity.
Delivery Time
30-45 days. Please contact our sales team for precise delivery estimates for machine purchases.
Product Warranty
Product Warranty
Warranty Period: 12 Months.
Warranty Terms: The Horizontal Screen Frame Dryer comes with a service warranty that covers its main electrical components, drying control unit, and structural drying trays. Some items—like heating tubes, insulation mats, and rubber seals—naturally wear out over time and are considered consumables, so they aren’t covered under the warranty. If any covered part stops working during the warranty period, our technicians will handle the repair or replacement, but customers will need to purchase any necessary spare parts. Please note that customers are responsible for all shipping costs when sending or receiving parts or equipment.
Technical & After Sales Service
Technical & After Sales Service
To help you get the best results, we provide robust after-sales support, including:
- On-site installation, setup, and training to ensure smooth integration into your workflow.
- Field servicing and repair visits upon request for issues that require hands-on attention.
- Dedicated customer service channels, including 24/7 phone support for quick resolution of queries or concerns.
- Regional technical assistance (where available) to reduce machine downtime and maintain productivity.
Delivery Time
Delivery Time
30-45 days. Please contact our sales team for precise delivery estimates for machine purchases.
Company Info
Prominent Tec Company Information
Address: House #9, Block #A, Road #1, Niketon, Dhaka-1212, Bangladesh.
Business Type: Importer, Indenting & Distributor, Agents
Business Range: Printing Machinery & Consumables
Main Products: Textile Label Printing Machine, Garments Printing Machine, Digital Garments Printing Machine, Paper & Packaging Printing Machine, Printing Inks, Chemicals, Mesh, Squeegee, Ribbon, Flexo Photopolymer Plates, CTP Plate
About us: Established in 2010, Prominent Tec is a leading importer, indenting agent, and distributor specializing in advanced printing machinery and high-quality consumables. We represent renowned international brands such as Focus Label Machinery (UK), Ink Tec Inc. (USA), and Azon Printer (Croatia), among others, providing comprehensive printing solutions tailored to the garment, textile, packaging, plastic, and metal printing industries. With a dedicated team of professionals, robust warehouse facilities, and a commitment to exceptional service, Prominent Tec ensures reliable supply and technical support, helping our customers achieve efficiency and excellence in their printing operations.
1. What does a horizontal screen dryer do?
It dries emulsion-coated screens evenly and fast—no runs, no dust—helping you get clean, sharp prints every time.
2. How does the PT-G1 improve print quality?
It keeps the temperature steady (up to 50°C) and uses powerful airflow to dry screens uniformly—ensuring strong emulsion, crisp lines, and longer-lasting prints.
3. Is it energy efficient for use in Bangladesh?
Yes. It’s built for efficiency with air recycling and quick drying—cutting down power use and working well even during load shedding.
4. How long does it take to dry a screen?
Usually between 20 to 45 minutes—much faster than air drying, so your production keeps moving.
5. What frame sizes does it support?
The PT-G101 model fits screens up to 1000 x 1300 mm—great for T-shirts and large fabric panels.
6. Is it easy to use?
Absolutely. Just load the screens, set the temperature, and go. Smooth drawers and low maintenance make it perfect for busy print shops.
