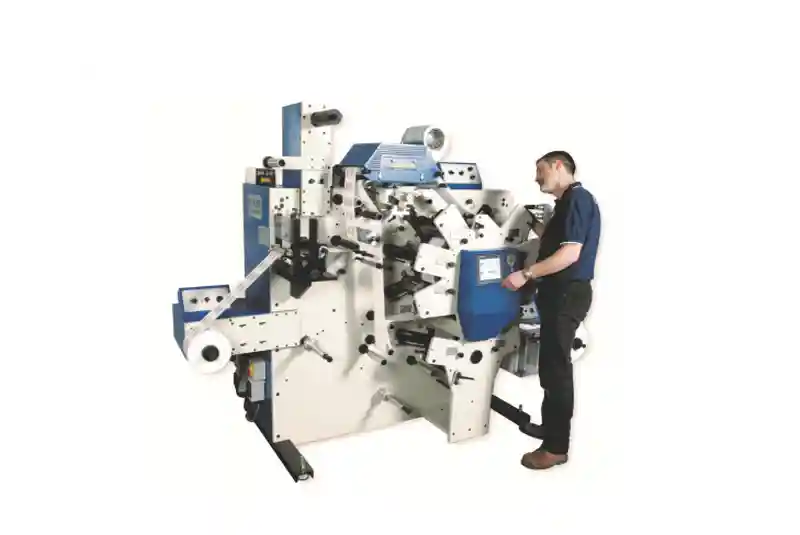

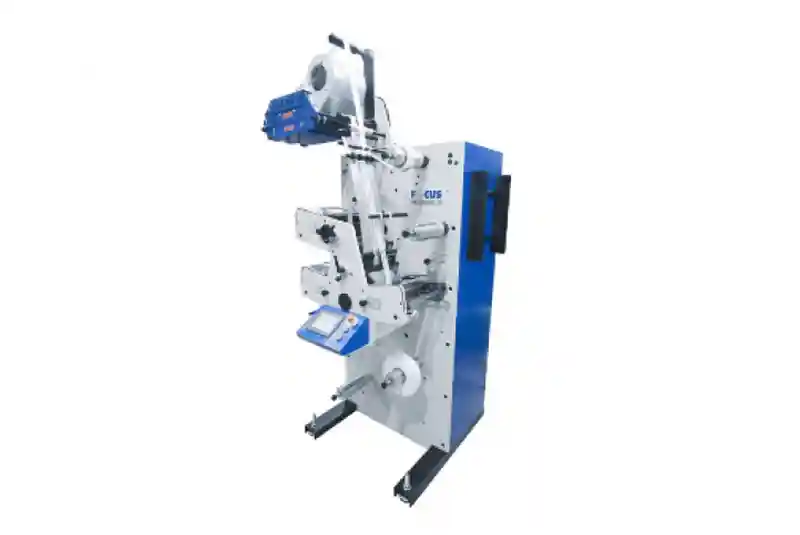

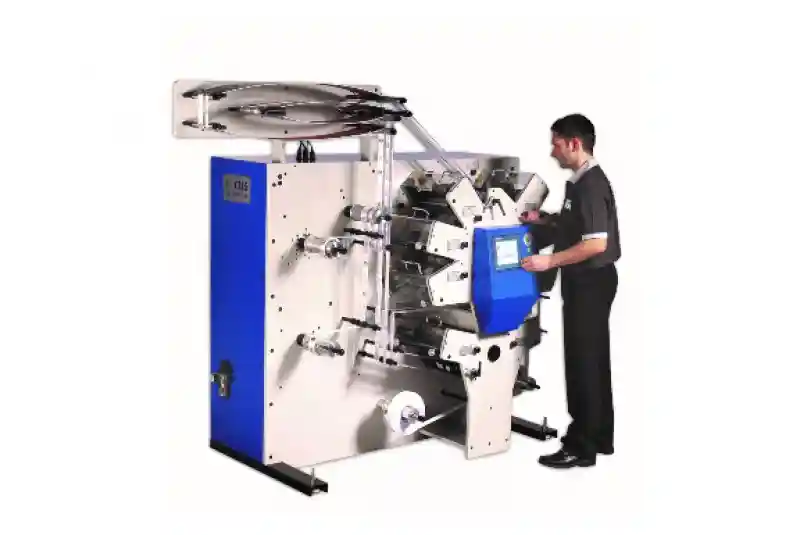

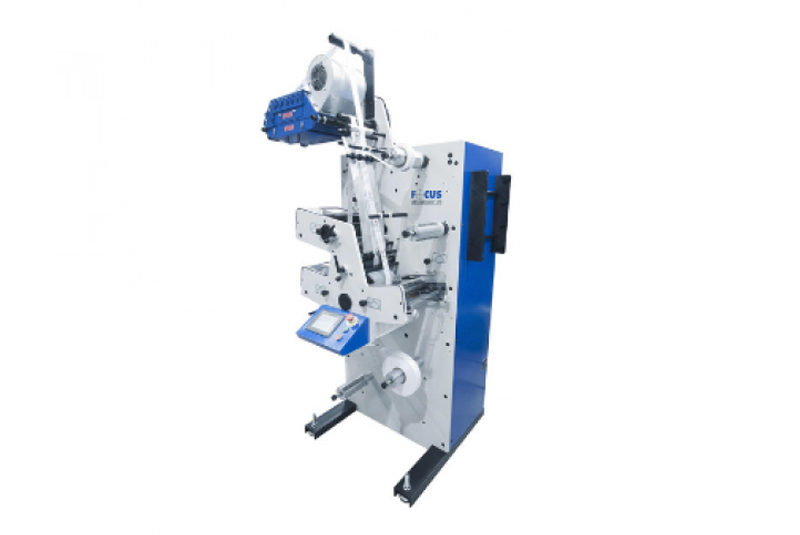

Focus LX Letterflex – Flexographic Printing Machine
Focus LX Letterflex for high-speed, high-quality flexographic printing on various materials. Perfect to the textile and label industries in Bangladesh, offering quick manufacturing and accuracy to garment labels, packaging, etc.
| Model name |
PT |
|---|---|
| Payment Method |
L/C at sight or T/T in advance |
| Warranty |
12 Months. |
Focus LX Letterflex Specification
| Feature | Specification |
| Machine Series | LX Letterflex |
| Printing Technology | Flexography |
| Configuration Options | 2+1, 4+2, 6+2 printing sections (e.g., LX2, LX4, LX6 models) + 1 finishing section |
| Max Printing Speed | Up to 70 meters per minute (m/min) |
| Max Printing Width | 150 mm |
| Print Repeatability | Minimum: 100 mm; Maximum: 300 mm |

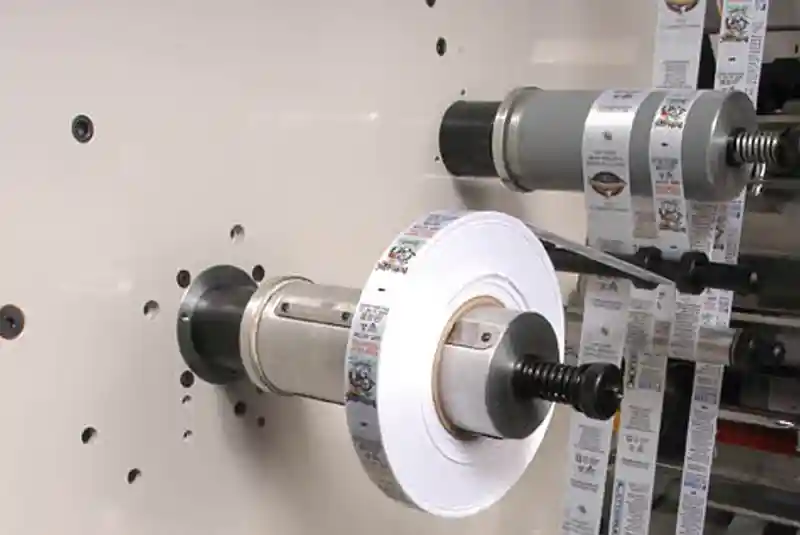

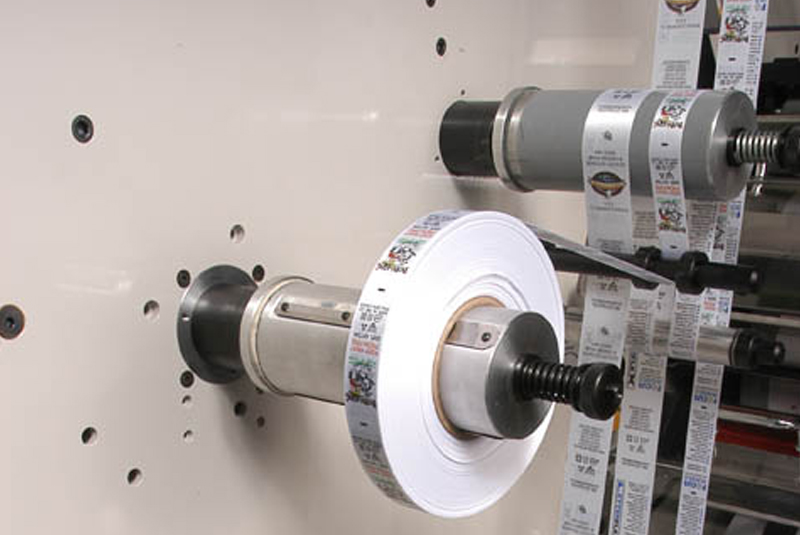

| Max Roll Diameter (Loading) | 450 mm |
| Max Roll Diameter (Take-up) | 450 mm |
| Gear Pitch | 1/8 CP (3.175 mm) |
| Power Supply | 220/240 Volts, 50 Hz, 1 Phase |

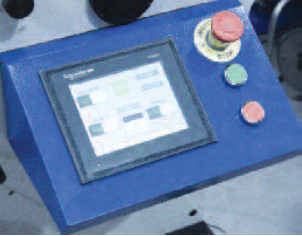

| Control System | NEW Touchscreen Controls with Live Production Data Monitoring |
| Connectivity | Global Web & App Based Connectivity for remote monitoring |
| Drying System | Combination Drying Systems (details may vary by configuration) |
| Ink System | Patented Quick Change Cartridge Ink Systems |
| Dimensions (LX2 Model) | Approx. 1.05 m (Length) x 0.8 m (Width) x 2.52 m (Height) |
| Mass (LX2 Model) | Approx. 650-850 kg |
| Integrated Features | Multi-Ribbon Printing, On-Run Register, Advance Setting Systems, In-Line Label Cutting Systems |
Advantage & Features
- Rapid change of cartridge ink system to minimize set up times.
- Bright, sharp prints with excellent register control.
- Works with many materials and can be used in a number of ways.
- Fast rates of up to 70 meters an hour production.
- It has touchscreen controls and web connectivity worldwide to monitor it in real-time.

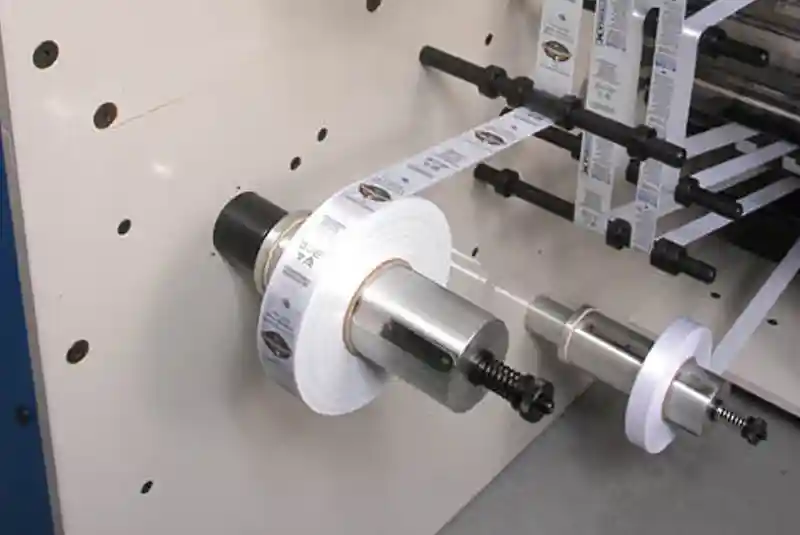

- Multi-ribbon printing at once to achieve maximum output.

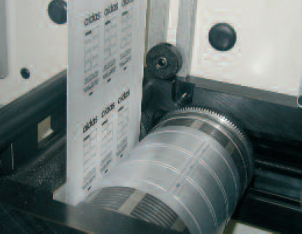

- Integrated in-line label cutting for efficiency
- Sturdy and robust to run all the time.
Applications
Garment labeling, decorative ribbons, apparel trims, heat transfers, dye sublimation, flexible packaging, self-adhesive labels, paper, cardboard, foil printing, specialty applications.
Warranty & Delivery
Warranty Period: 12 Months (Shipping cost to be borne by customer)
Technical & After Sales Service: We provide installation, training, and ongoing support including service visits and 24/7 phone assistance to keep your machine running smoothly.
Delivery Time: 30–45 days (Estimated). For exact timing, please contact our sales team.
Frequently Asked Questions
Q1: What types of materials can the Focus LX Letterflex print on?
A1: It prints on ribbons, elastic, heat transfer films, polymer films, paper, labels, cardboard, and foil—offering wide material compatibility.
Q2: How does the LX Letterflex improve production efficiency for garment labels?
A2: Quick Change Ink Cartridges cut downtime, multi-ribbon printing increases output, and in-line cutting speeds up production.
Q3: What are the power requirements for the Focus LX Letterflex?
A3: It uses 220/240V, 50Hz, 1 Phase—standard for industrial setups in Bangladesh.
Q4: How does the LX Letterflex contribute to quality control?
A4: On-run register control and touchscreen monitoring enable real-time adjustments. The system can also be enhanced with an automated inspection unit for consistent, high-quality prints.
Q5: How does the Focus LX Letterflex contribute to quality control?
A5: On-run register control and touchscreen monitoring enable real-time adjustments for consistent, high-quality prints.
Q6: Is local service and support available for this Focus LX Letterflex?
A6: Yes, Prominent Tec in Bangladesh offers installation, training, service, and spare parts.
