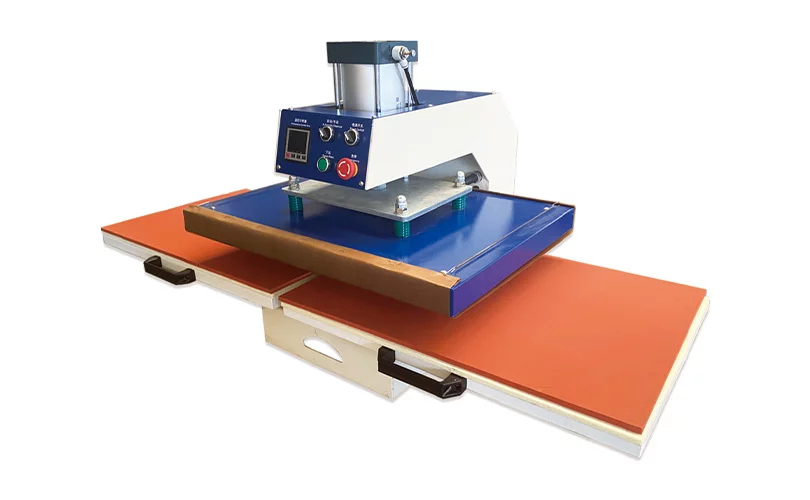

Double-position Semi-automatic Heat Transfer Machine – Sliding Heat Press Machine
Elevate your textile and garment decoration business in Bangladesh with the PT-J3 Double-Position Semi-automatic Heat Transfer Machine. This is a key brand advantage for businesses looking to scale up. Engineered for efficiency, precision, and a fast printing speed, this robust, pneumatic heat press allows for simultaneous preparation and pressing, significantly boosting your production speed and output.
- Model name: PT-J3
- Payment Method: L/C at Sight or T/T in Advance
- Min. Order: 01
- Warranty: 12 Months
- Packaging: Standard Export Wooden Case
Share:
Request a quote for
Request a quote for
Double-position Semi-automatic Heat Transfer Machine – Sliding Heat Press Machine
Elevate your textile and garment decoration business in Bangladesh with the PT-J3 Double-Position Semi-automatic Heat Transfer Machine. This is a key brand advantage for businesses looking to scale up. Engineered for efficiency, precision, and a fast printing speed, this robust, pneumatic heat press allows for simultaneous preparation and pressing, significantly boosting your production speed and output.
- Model name: PT-J3
- Payment Method: L/C at Sight or T/T in Advance
- Min. Order: 01
- Warranty: 12 Months
- Packaging: Standard Export Wooden Case
Share:
Product Info
Pneumatic Mark Heat Press Printing Machine
Ideal for businesses seeking to optimize their heat transfer processes for t-shirts, garments, and promotional items, the PT-J3 combines a time-saving, labor-saving operation with industrial-grade performance, making high-volume, high-quality heat transfers more accessible than ever.Product Specification
| Model | Printing Area | Temperature Range | Voltage/Power | G.W. | Packing Size（mm） |
| PT-J301 | 400*500mm | 0-260℃ | 220V/3KW | 98 | 1050*750*700 |
| PT-J302 | 400*600mm | 0-260℃ | 220V/3.5KW | 104 | 1250*750*700 |
| PT-J303 | 500*700mm | 0-260℃ | 220V/4.5KW | 139 | 1440*800*800 |
| PT-J304 | 400*500mm | 0-260℃ | 380V/3KW | 600 | 1500*800*1700 |
| PT-J305 | 500*700mm | 0-260℃ | 380V/4.5KW | 780 | 1600*900*1700 |
| PT-J306 | 600*800mm | 0-260℃ | 380V/6KW | 600 | 1500*800*1700 |
Advantage & Features
- It has an easy push-pull work table based on a new trolley design to ensure smooth sliding. This light weight system makes the plate runs faster between stations. The machine itself is durable and strong with excellent load-bearing capacity.

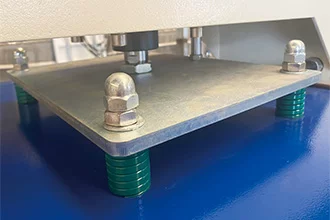

- The heating plate is specially designed for fast heating and fast cooling to spread heat evenly, and the work surface is treated so you can easily print high-quality heat transfer, hot stamping, and sublimation designs.

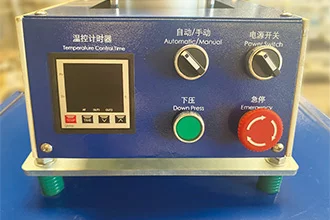

- The control panel is a digital dedicated station for precise settings.

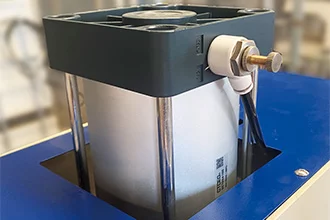

- The high-quality pneumatic system, powered by a robust driver, provides consistent pressure. It features adjustable air pressure to suit different materials and transfer types.
- The process of setting up a new design is simplified, similar to a quick version adjustment for a new transfer ” screen version,” and the platen system allows for easy locking and replacement.
- This machine is virtually maintenance free, ensuring maximum uptime.
Applications
The PT-J3 is a versatile semi-automatic heat transfer machine for Bangladesh’s textile, garment, and promo sectors. It is perfect for:
- Decorating Apparel: Its primary use for t-shirts, jerseys, and other garments.
- Customizing Promotional Products: Ideal for bags, coasters, and other items.
- Adding Labels and Logos: Provides a clean and professional finish.
- Integrated Workflows: For users who screen print their own transfers, the PT-J3’s efficiency pairs perfectly with advanced screen printing machines that have features like automatic scraping and automatic cleaning.
- Flexible Setups: The system allows for easily changing the board (lower platen) to accommodate different item sizes.
Specification
Pneumatic Mark Heat Press Printing Machine
Ideal for businesses seeking to optimize their heat transfer processes for t-shirts, garments, and promotional items, the PT-J3 combines a time-saving, labor-saving operation with industrial-grade performance, making high-volume, high-quality heat transfers more accessible than ever.Product Specification
| Model | Printing Area | Temperature Range | Voltage/Power | G.W. | Packing Size（mm） |
| PT-J301 | 400*500mm | 0-260℃ | 220V/3KW | 98 | 1050*750*700 |
| PT-J302 | 400*600mm | 0-260℃ | 220V/3.5KW | 104 | 1250*750*700 |
| PT-J303 | 500*700mm | 0-260℃ | 220V/4.5KW | 139 | 1440*800*800 |
| PT-J304 | 400*500mm | 0-260℃ | 380V/3KW | 600 | 1500*800*1700 |
| PT-J305 | 500*700mm | 0-260℃ | 380V/4.5KW | 780 | 1600*900*1700 |
| PT-J306 | 600*800mm | 0-260℃ | 380V/6KW | 600 | 1500*800*1700 |
Advantage & Features
Advantage & Features
- It has an easy push-pull work table based on a new trolley design to ensure smooth sliding. This light weight system makes the plate runs faster between stations. The machine itself is durable and strong with excellent load-bearing capacity.
- The heating plate is specially designed for fast heating and fast cooling to spread heat evenly, and the work surface is treated so you can easily print high-quality heat transfer, hot stamping, and sublimation designs.
- The control panel is a digital dedicated station for precise settings.
- The high-quality pneumatic system, powered by a robust driver, provides consistent pressure. It features adjustable air pressure to suit different materials and transfer types.
- The process of setting up a new design is simplified, similar to a quick version adjustment for a new transfer ” screen version,” and the platen system allows for easy locking and replacement.
- This machine is virtually maintenance free, ensuring maximum uptime.
Applications
Applications
The PT-J3 is a versatile semi-automatic heat transfer machine for Bangladesh’s textile, garment, and promo sectors. It is perfect for:
- Decorating Apparel: Its primary use for t-shirts, jerseys, and other garments.
- Customizing Promotional Products: Ideal for bags, coasters, and other items.
- Adding Labels and Logos: Provides a clean and professional finish.
- Integrated Workflows: For users who screen print their own transfers, the PT-J3’s efficiency pairs perfectly with advanced screen printing machines that have features like automatic scraping and automatic cleaning.
- Flexible Setups: The system allows for easily changing the board (lower platen) to accommodate different item sizes.
Product Comparison
Product Comparison Table with Similar Products
| Brand | Key Product Line(s) | Primary Material(s) | Backlighting | Filtration |
| PT-J3 (Generic Model) | PT-J3 / PT Series | Stainless Steel (Implied) | Standard (Fluorescent) | Not Mentioned |
| Vastex | VWB-Series | Stainless Steel | Optional Add-on | Optional (Mesh Tray) |
| RhinoTech | Pro, Econ, Ultra/PolyLite | Polypropylene | Standard (LED) | Optional (Multi-Stage) |
| Lawson | Poly-Pro Series | Polypropylene | Standard | Optional (Multi-Stage) |
| Easiway | E-Series | Polypropylene | Optional/Included | Optional (EasiFlo) |
Product Warranty
Warranty Period: 12 Months.
Warranty Terms: The Double-Position Semi-Automatic Heat Transfer Machine comes with a service warranty that covers its main electrical parts, pneumatic system, and digital control unit. Some items—like heating pads, silicone mats, and pressure seals—naturally wear out over time and are considered consumables, so they aren’t covered under the warranty. If any covered part stops working during the warranty period, our technicians will handle the repair or replacement, but customers will need to purchase any necessary spare parts. Please note that customers are responsible for all shipping costs when sending or receiving parts or equipment.
Technical & After Sales Service
To help you get the best results, we provide robust after-sales support, including:
- On-site installation, setup, and training to ensure smooth integration into your workflow.
- Field servicing and repair visits upon request for issues that require hands-on attention.
- Dedicated customer service channels, including 24/7 phone support for quick resolution of queries or concerns.
- Regional technical assistance (where available) to reduce machine downtime and maintain productivity.
Delivery Time
30-45 days. Please contact our sales team for precise delivery estimates for machine purchases.
Product Warranty
Product Warranty
Warranty Period: 12 Months.
Warranty Terms: The Double-Position Semi-Automatic Heat Transfer Machine comes with a service warranty that covers its main electrical parts, pneumatic system, and digital control unit. Some items—like heating pads, silicone mats, and pressure seals—naturally wear out over time and are considered consumables, so they aren’t covered under the warranty. If any covered part stops working during the warranty period, our technicians will handle the repair or replacement, but customers will need to purchase any necessary spare parts. Please note that customers are responsible for all shipping costs when sending or receiving parts or equipment.
Technical & After Sales Service
Technical & After Sales Service
To help you get the best results, we provide robust after-sales support, including:
- On-site installation, setup, and training to ensure smooth integration into your workflow.
- Field servicing and repair visits upon request for issues that require hands-on attention.
- Dedicated customer service channels, including 24/7 phone support for quick resolution of queries or concerns.
- Regional technical assistance (where available) to reduce machine downtime and maintain productivity.
Delivery Time
Delivery Time
30-45 days. Please contact our sales team for precise delivery estimates for machine purchases.
Company Info
Prominent Tec Company Information
Address: House #9, Block #A, Road #1, Niketon, Dhaka-1212, Bangladesh.
Business Type: Importer, Indenting & Distributor, Agents
Business Range: Printing Machinery & Consumables
Main Products: Textile Label Printing Machine, Garments Printing Machine, Digital Garments Printing Machine, Paper & Packaging Printing Machine, Printing Inks, Chemicals, Mesh, Squeegee, Ribbon, Flexo Photopolymer Plates, CTP Plate
About us: Established in 2010, Prominent Tec is a leading importer, indenting agent, and distributor specializing in advanced printing machinery and high-quality consumables. We represent renowned international brands such as Focus Label Machinery (UK), Ink Tec Inc. (USA), and Azon Printer (Croatia), among others, providing comprehensive printing solutions tailored to the garment, textile, packaging, plastic, and metal printing industries. With a dedicated team of professionals, robust warehouse facilities, and a commitment to exceptional service, Prominent Tec ensures reliable supply and technical support, helping our customers achieve efficiency and excellence in their printing operations.
Q1: What is a Double-Position Semi-automatic Heat Transfer Machine?
A1: It has two platens for continuous work with automatic pressure and manual loading.
Q2: How does the PT-J3 compare to manual presses?
A2: It’s faster and easier with dual platens and pneumatic pressure for higher output than manual presses.
Q3: Is it good for sublimation?
A3: Yes — its even heat and pressure are perfect for sublimation on polyester and coated blanks.
Q4: What maintenance is needed?
A4: Keep it clean, check air lines, clear debris, lubricate moving parts — lifetime maintenance is available from PT.
Q5: Can I get spare parts in Bangladesh?
A5: Yes — common parts like elements and sensors are easy to find through local heat press suppliers.
Q6: What’s the power requirement?
A6: Runs on 220V, uses about 3–4.5 KW depending on platen size — check your wiring.
