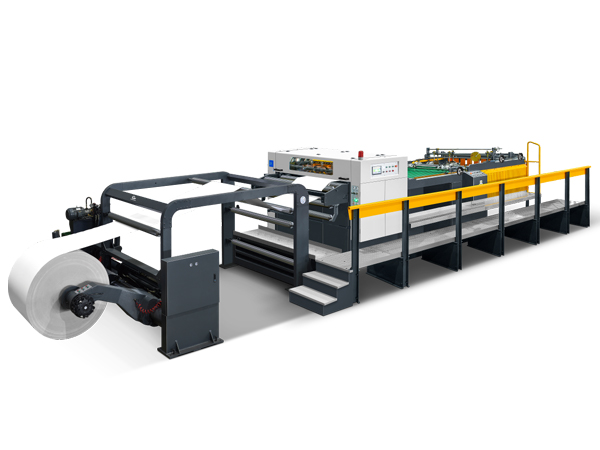

Roll to Sheet Paper Cutting Machine
Paper cutting machine to accurate and fast roll-to-sheet conversion. Best suited to the paper mills, printers and packaging converters to enhance productivity and reduce wastage with uniform and quality cuts.
Description
Paper Cutting Machine Specification
| Specification | Details |
| Type of cutting | Top blade rotary, bottom blade fixed |
| Weight of paper | 60–550 gsm |
| Reel diameter | Max 1800 mm |
| Finished width | Max 1400 mm |
| Finished sheet length | Min. 450 – Max. 1650 mm |
| Number of rolls cutting | 2 rolls |
| Cutting accuracy | ±0.3 mm |
| Max. speed of cutting | 350 cuts/min |
| Max. cutting speed | 300 m/min |
| Delivery pile height | 1500 mm |
| Requirement of air pressure | 0.8 MPa |
| Voltage | AC 380V / 220V, 50 Hz |
| Main motor power | 11 kW |
Advantage & Features
- Works at 300 meters/min, 300 cuts/min at +/- 0.5mm accuracy.
- PLC control with automatic tension, sheet counting, stacking and mark insertion.
- Easy loading paper roll hydraulic unwinding unit.

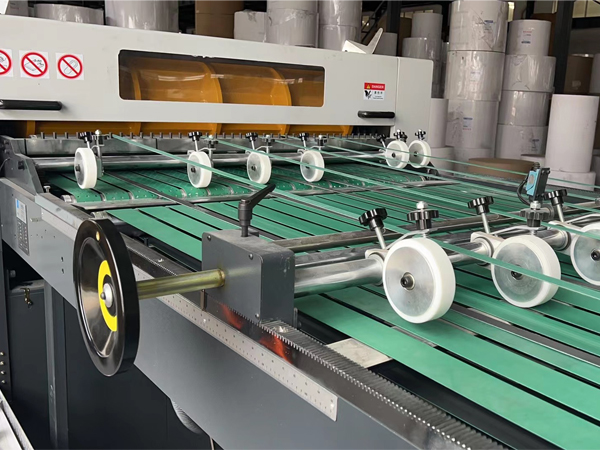

- Optimal finished sheet collection unit.
- Slitting unit for cutting and trimming waste edges
- Touchscreen to use in preset counting and labeling.
- Stable 25mm thick steel frame for high-speed operation
Application
Paper mills, printing presses, packaging converters, FMCG packaging, RMG packaging, publishing, education, large-scale paper production
