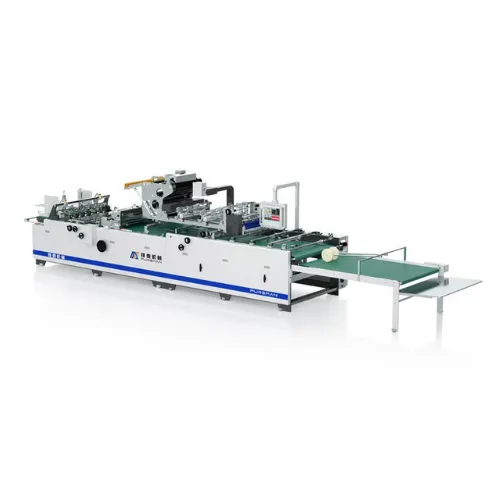

Smart Window Patching Machine
Window patching machine for precise, high-speed window patching in packaging. Perfect to have Bangladesh manufacturers produce quality and efficient packaging of pharmaceuticals, food, and retail products.
| Model Name |
FKT-BMW1050L |
|---|---|
| Payment Method |
L/C at sight or T/T in advance |
| Warranty |
12 Months. |
Window Patching Machine Specification
| Source | Specifications |
| Model Name | FKT-BMW1050L |
| Max.paper size | W1030×L720mm |
| Min.paper size | W150×L150mm |
| Max.Film size | W500×L350mm |
| Min.Film size | W50×L50mm |
| Film thickness | 0.08-0.3mm |
| Heating | Up to 0.4 mm |
| Paper thickness Corrugated board | ≤5mm |
| Cardboard | 200-2000g/m² |
| Positioning Accurate | ±0. 5 mm |
| Max Machine speed | 7500sheets/hour |
| Power supply | AC380V, 3 phase, 50Hz |
| Power | 17.5kW(heating increases by 6kW) |
| Air supply | 0.8MPa,>0.3m³/min |
| Overall dimension (L x W x H) | 8000×1920×1800mm |
| Net Weight | 3500kg |
Advantage & Features
- Fast operating speed of 7500 sheets/hour.
- Cuts and creases PVC, PET and PP films with precision V-cutting.
- Optional two-sided tape system to be used online.
- Multi sensor real-time monitoring.
- Digital control with easy-to-use parameters.
- New transverse film-cutting system that operates with low noise.
Applications
Pharmaceutical packaging, food packaging, FMCG packaging, retail packaging.
Warranty & Delivery
Warranty Period: 12 Months (Shipping cost to be borne by customer)
Technical & After Sales Service: We provide installation, training, and ongoing support including service visits and 24/7 phone assistance to keep your machine running smoothly.
Delivery Time: 30–45 days (Estimated). For exact timing, please contact our sales team.
Frequently Asked Questions
Q: What is the primary ROI driver for this Window Patching Machine?
A: Beyond speed and labor savings, precision is key—defects under 1% save costly materials.
Q: Is this machine suitable for food-grade packaging?
A: Yes. It features 304 stainless steel rollers, fast cleaning, and supports high-barrier films.
Q: Is local service and support available for this Window Patching Machine?
A: Yes, Prominent Tec in Bangladesh offers installation, training, service, and spare parts
