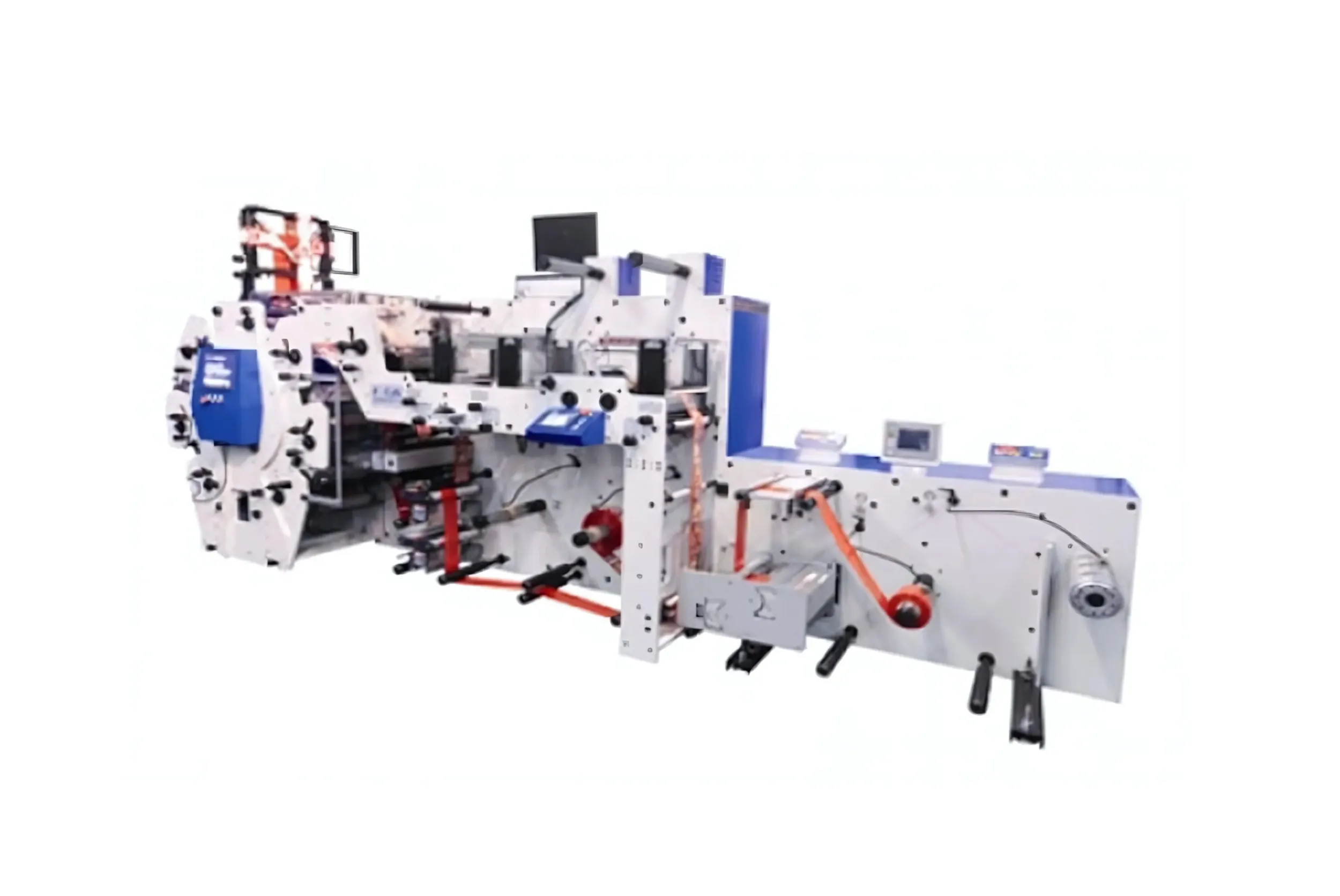

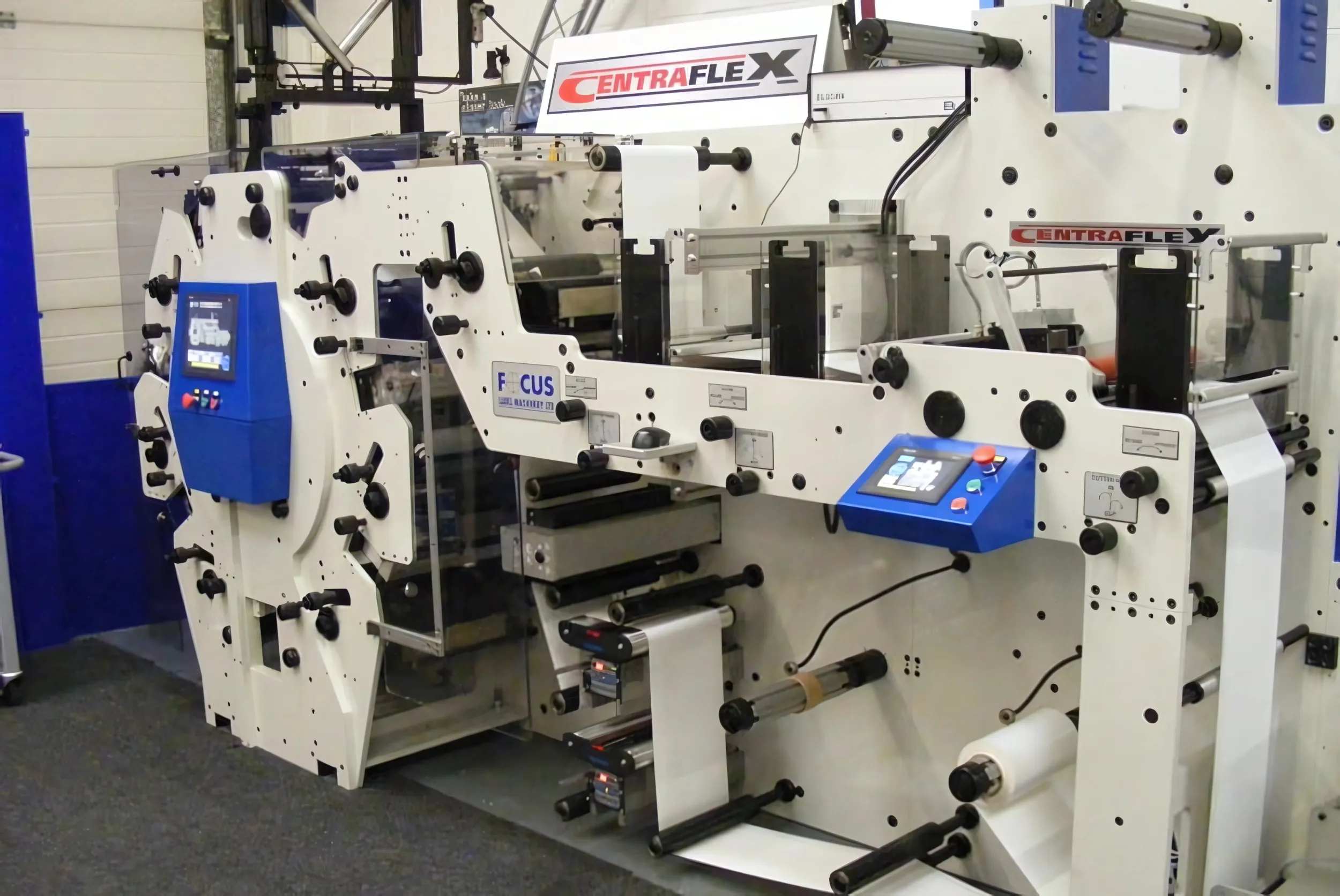

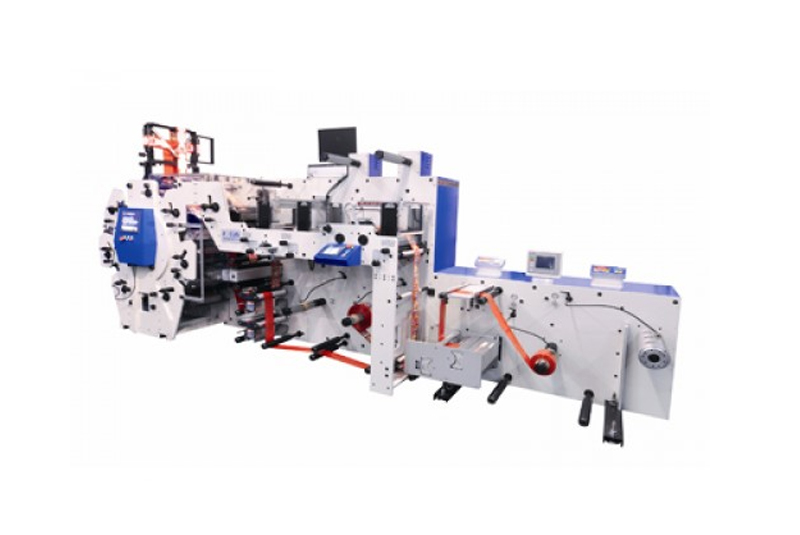

Focus Centraflex Machine
Centraflex flexo printing system to print high quality flexo prints on a variety of substrates. Ideal to print colorful, accurate labels, packaging, and films with excellent registration.
| Model name |
PT |
|---|---|
| Payment Method |
L/C at sight or T/T in advance |
| Warranty |
12 Months. |
Centraflex Specification
| Model | CENTRAFLEX 250/330 | CENTRAFLEX 250/330 U.V |
| Number of Colours | 5 + 1 | 6 + 1 |
| Max Print Width | 10”(254mm)/13”(330mm) | 10”(254mm)/13”(330mm) |
| Print range | 7-20” (188-510mm) | 10”-20” (254mm-510mm) |
| IR Drying | Standard | Optional |
| UV Drying | 1 Optional | Standard |
| Chill Drum | Optional | Standard |
| Rotary Die Cutting | Optional | Optional |
| Rotary Slitting | Optional | Optional |
| Max Unwind Diameter | 650mm (Std) 1000mm(Optional) | 1000mm (Std) |
| Max Rewind Diameter | 600mm(22”) | 600mm(22”) |
Advantage & Features
- New press design with 5+1 or 6+1 color options.
- Produces high-quality registration and print, even on non-supported web material.
- Accommodates UV and IR drying systems.
- Equipped with a chilled central impression drum
- Small form factor to fit into a compact converting system.
Applications
Garment packaging, poly bags, hang tags, food packaging, pouches, sachets, pharmaceutical labels, blister foils, self-adhesive labels, tickets.
Warranty & Delivery
Warranty Period: 12 Months (Shipping cost to be borne by customer)
Technical & After Sales Service: We provide installation, training, and ongoing support including service visits and 24/7 phone assistance to keep your machine running smoothly.
Delivery Time: 30–45 days (Estimated). For exact timing, please contact our sales team.
Frequently Asked Questions
Q1: What makes the Centraflex the best choice for printing on flexible films in Bangladesh?
A1: The CI drum on this centraflex machine prevents film distortion, ensuring sharp registration. This is ideal for poly bags and flexible packaging, especially when using equipment where the machines are central impression flexographic by design.
Q2: Is local service and support available for this Centraflex?
A2: Yes, Prominent Tec in Bangladesh offers installation, training, service, and spare parts.
Q3: How does this label press machine compare to an inline flexo press?
A3: Centraflex delivers better registration, quality, and material versatility—making it more advanced and future-ready.
Q4: What types of inks can I use with the Centraflex?
A4: It supports water-based, solvent-based, and UV inks, depending on the chosen drying system.
Q5: Is the Centraflex a cost-effective solution?
A5: Yes, it offers fast setup, low waste, high speed, and handles diverse jobs—ensuring strong ROI and lower costs.
