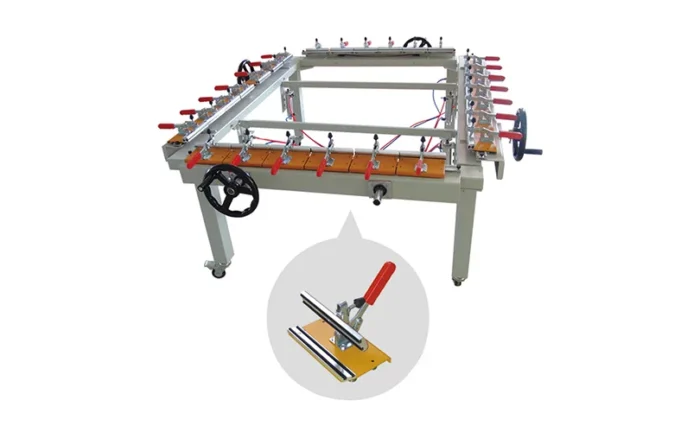

Chain Wheel Screen Stretching Machine – Prominent Tec
Achieve flawless, high-tension screen stretching with the PT-E4 Chain Wheel Screen Stretching Machine. Engineered for the demanding needs of Bangladesh’s garment and textile industry, this robust manual screen stretching machine provides precise, uniform tension for superior print quality and is an essential accessory for screen frame stretching.
- Model name: PT-E4
- Payment Method: L/C at Sight or T/T in Advance
- Min. Order: 01
- Warranty: 12 Months.
- Packaging: Standard Export Wooden Case
Share:
Request a quote for
Request a quote for
Chain Wheel Screen Stretching Machine – Prominent Tec
Achieve flawless, high-tension screen stretching with the PT-E4 Chain Wheel Screen Stretching Machine. Engineered for the demanding needs of Bangladesh’s garment and textile industry, this robust manual screen stretching machine provides precise, uniform tension for superior print quality and is an essential accessory for screen frame stretching.
- Model name: PT-E4
- Payment Method: L/C at Sight or T/T in Advance
- Min. Order: 01
- Warranty: 12 Months.
- Packaging: Standard Export Wooden Case
Share:
Product Info
High Quality Chain Wheel Screen Stretching Machine
Its user-friendly chain-drive mechanism and pneumatic assist feature make it the ideal, cost-effective upgrade for any print shop in Dhaka and beyond, ensuring consistent results, reduced waste, and increased efficiencyProduct Specification
| Attribute | PT-E401 | PT-E402 |
| Model | PT-E4 Chain Wheel Screen Stretching Machine | PTE4 Chain Wheel Screen Stretching Machine |
| Mechanism Type | Manual Chain & Hand Wheel Operation | Manual Chain & Hand Wheel Operation |
| Max. Stretching Area | 900 x 1200 mm | 1200 x 1500 mm |
| Maximum Tension | 30N | 30N |
| Core Components | Chain Drive System, Pneumatic Mesh Assist | Chain Drive System, Pneumatic Mesh Assist |
| Net Weight | 175 kg | 195 kg |
Advantage & Features
“Blends the strengths of both pneumatic and mechanical stretching systems to deliver strong, uniform tension with less manual effort.”
Applications
- Export-Oriented Garment Printing: Perfect for t-shirts, polo shirts, trousers, and other apparel requiring precise, multi-color prints.
- Home Textiles: Ideal for preparing screens for printing on bed linens, curtains, cushion covers, and other decorative fabrics.
- Jute & Diversified Products: Effectively stretches mesh for printing on jute bags, promotional items, and other specialized materials.
- Commercial Printing Shops: A vital tool for businesses offering a variety of screen-printing services, particularly in efficient screen frame stretching.
- Educational & Training Institutes: Its simplicity and durability make it an excellent choice for teaching the fundamentals of professional screen preparation.
Specification
High Quality Chain Wheel Screen Stretching Machine
Its user-friendly chain-drive mechanism and pneumatic assist feature make it the ideal, cost-effective upgrade for any print shop in Dhaka and beyond, ensuring consistent results, reduced waste, and increased efficiencyProduct Specification
| Attribute | PT-E401 | PT-E402 |
| Model | PT-E4 Chain Wheel Screen Stretching Machine | PTE4 Chain Wheel Screen Stretching Machine |
| Mechanism Type | Manual Chain & Hand Wheel Operation | Manual Chain & Hand Wheel Operation |
| Max. Stretching Area | 900 x 1200 mm | 1200 x 1500 mm |
| Maximum Tension | 30N | 30N |
| Core Components | Chain Drive System, Pneumatic Mesh Assist | Chain Drive System, Pneumatic Mesh Assist |
| Net Weight | 175 kg | 195 kg |
Advantage & Features
Advantage & Features
“Blends the strengths of both pneumatic and mechanical stretching systems to deliver strong, uniform tension with less manual effort.”
Applications
Applications
- Export-Oriented Garment Printing: Perfect for t-shirts, polo shirts, trousers, and other apparel requiring precise, multi-color prints.
- Home Textiles: Ideal for preparing screens for printing on bed linens, curtains, cushion covers, and other decorative fabrics.
- Jute & Diversified Products: Effectively stretches mesh for printing on jute bags, promotional items, and other specialized materials.
- Commercial Printing Shops: A vital tool for businesses offering a variety of screen-printing services, particularly in efficient screen frame stretching.
- Educational & Training Institutes: Its simplicity and durability make it an excellent choice for teaching the fundamentals of professional screen preparation.
Product Comparison
Product Comparison Table with Similar Products
| Feature | PT-E4 Screen Stretching Machine | Basic Manual Stretcher (Clamps only) | Fully Automatic Stretching Machine |
| Tension Control | Excellent (Chain Drive + Pneumatic) | Poor to Fair (Inconsistent) | Excellent (Motorized, Programmable) |
| Efficiency | High (Can stretch multiple frames) | Low (Single frame, labor-intensive) | Very High (Fast, automated) |
| Consistency | High | Low | Very High |
| Required Skill | Low to Medium | Medium to High | Low |
| Best For | SMEs & professional shops in Bangladesh | Hobbyists or very low volume | Large-scale industrial operations |
Product Warranty
Warranty Period: 12 Months.
Warranty Terms: The Chain Wheel Screen Stretching Machine comes with a service warranty that covers its main structural frame, chain drive system, and manual tensioning mechanism. Some items—like tension springs, rubber pads, and alignment wheels—naturally wear out over time and are considered consumables, so they aren’t covered under the warranty. If any covered part stops working during the warranty period, our technicians will handle the repair or replacement, but customers will need to purchase any necessary spare parts. Please note that customers are responsible for all shipping costs when sending or receiving parts or equipment.
Technical & After-Sales Service
To help you get the best results, we provide robust after-sales support, including:
- On-site installation, setup, and training to ensure smooth integration into your workflow.
- Field servicing and repair visits upon request for issues that require hands-on attention.
- Dedicated customer service channels, including 24/7 phone support for quick resolution of queries or concerns.
- Regional technical assistance (where available) to reduce machine downtime and maintain productivity.
Delivery Time
30-45 days. Please contact our sales team for precise delivery estimates for machine purchases.
Product Warranty
Product Warranty
Warranty Period: 12 Months.
Warranty Terms: The Chain Wheel Screen Stretching Machine comes with a service warranty that covers its main structural frame, chain drive system, and manual tensioning mechanism. Some items—like tension springs, rubber pads, and alignment wheels—naturally wear out over time and are considered consumables, so they aren’t covered under the warranty. If any covered part stops working during the warranty period, our technicians will handle the repair or replacement, but customers will need to purchase any necessary spare parts. Please note that customers are responsible for all shipping costs when sending or receiving parts or equipment.
Technical & After Sales Service
Technical & After-Sales Service
To help you get the best results, we provide robust after-sales support, including:
- On-site installation, setup, and training to ensure smooth integration into your workflow.
- Field servicing and repair visits upon request for issues that require hands-on attention.
- Dedicated customer service channels, including 24/7 phone support for quick resolution of queries or concerns.
- Regional technical assistance (where available) to reduce machine downtime and maintain productivity.
Delivery Time
Delivery Time
30-45 days. Please contact our sales team for precise delivery estimates for machine purchases.
Company Info
Prominent Tec Company Information
Address: House #9, Block #A, Road #1, Niketon, Dhaka-1212, Bangladesh.
Business Type: Importer, Indenting & Distributor, Agents
Business Range: Printing Machinery & Consumables
Main Products: Textile Label Printing Machine, Garments Printing Machine, Digital Garments Printing Machine, Paper & Packaging Printing Machine, Printing Inks, Chemicals, Mesh, Squeegee, Ribbon, Flexo Photopolymer Plates, CTP Plate
About us: Established in 2010, Prominent Tec is a leading importer, indenting agent, and distributor specializing in advanced printing machinery and high-quality consumables. We represent renowned international brands such as Focus Label Machinery (UK), Ink Tec Inc. (USA), and Azon Printer (Croatia), among others, providing comprehensive printing solutions tailored to the garment, textile, packaging, plastic, and metal printing industries. With a dedicated team of professionals, robust warehouse facilities, and a commitment to exceptional service, Prominent Tec ensures reliable supply and technical support, helping our customers achieve efficiency and excellence in their printing operations.
1. Why use a stretching machine instead of hand-stretching?
Manual stretching often leads to loose tension and poor print results. The PT-E4 gives you sharp, consistent tension—perfect for export-quality prints.
2. How does the PT-E4 keep the mesh tight and even?
It combines a chain-driven pull system with pneumatic assist to stretch the mesh evenly on all sides—no sagging or distortion.
3. Is it suitable for detailed printing?
Absolutely! It can reach up to 30 N/cm tension, perfect for fine lines, halftones, and clean, sharp prints.
4. Will my staff find it hard to use?
Not at all. It's user-friendly with hand wheels that need minimal effort—easy to learn and fast to operate.
5. What frame sizes and mesh counts does it support?
It supports various frame sizes (up to 1200x1500mm) and all common mesh counts used in garment printing.
6. Can it stretch more than one frame at once?
Yes, you can stretch multiple small frames together—great for saving time in busy print shops.
7. Why choose this over a fully automatic machine?
It offers similar tension quality at a much lower cost—ideal for Bangladeshi SMEs looking for value without compromise.
