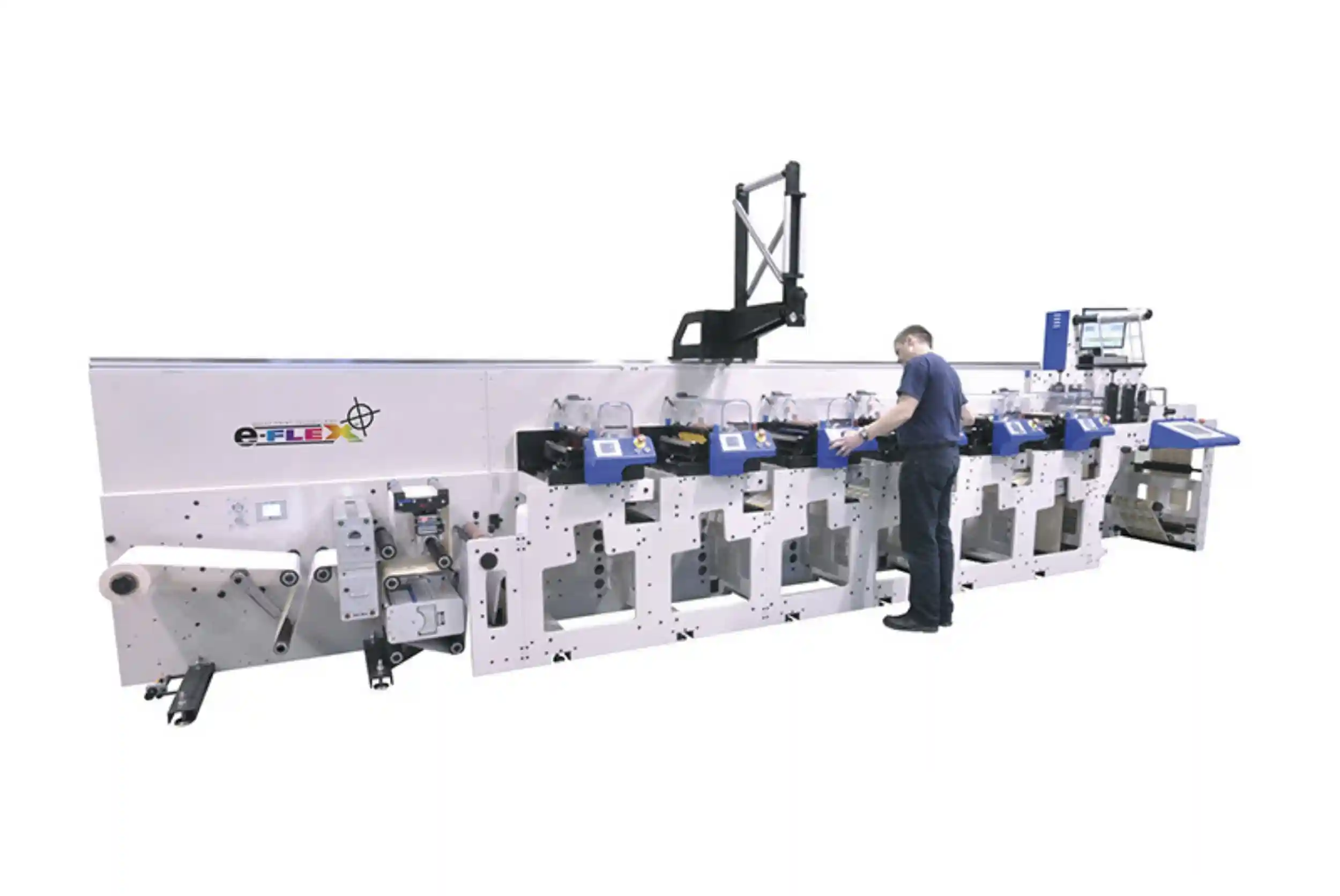

Focus eFlex Printing Machine
EFLEX printing machine for high-quality, high-speed flexographic printing. Designed for Bangladesh businesses to produce premium labels, packaging, and secure prints with minimal waste and maximum efficiency.
| Model name |
PT |
|---|---|
| Payment Method |
L/C at sight or T/T in advance |
| Warranty |
12 Months. |
EFLEX Specification
| Web Width | 330mm-430mm |
| Number of Colours | 2 to 12 |
| Min Print Length | 7”(178mm) |
| Max Print Length | 20”(508mm) |
| Max Unwind | 1000mm |
| Pre-Register | Yes |
| Auto register | Yes |
| 2nd Pass | Option |
| Rail Mounted Equipment | Option |
| Drying Systems | IR,UV or LED |
| Chill Rolls | Option |
| Rotary Die Stations | Yes |
| Slitting | Yes |
| Max Rewind | 800mm |
| Rotary Die Sheet Station | Yes |
| Digital Ink jet Module | Option |
Advantage & Features
- Servo-controlled system to control each print station precisely.
- Rapid off-press cleaning minimizes preparation and downtimes.
- Digital ink drying and servo drives that are energy efficient.
- Automatic register adjustments of accurate prints.
- Flexible design using rail-mounted systems and in-line inspection.
- Accepts a wide range of substrates between 30 and 380 microns.
Applications
Self-adhesive labels, wrap-around labels, shrink sleeves, garment tags, care labels, flexible packaging, folding cartons, security printing, specialty films
Warranty & Delivery
Warranty Period: 12 Months (Shipping cost to be borne by customer)
Technical & After Sales Service: We provide installation, training, and ongoing support including service visits and 24/7 phone assistance to keep your machine running smoothly.
Delivery Time: 30–45 days (Estimated). For exact timing, please contact our sales team.
Frequently Asked Questions
Q1. What makes the EFLEX a good choice for the Bangladesh market?
A1. As a European-built machine from a leading manufacturer, with local support from Prominent Tec, EFLEX is ideal for RMG, food, and pharma packaging.
Q2. Can the EFLEX handle sustainable and recycled materials?
A2. Yes, it runs recycled and eco-films efficiently with low waste, meeting green standards.
Q3. How does the EFLEX servo technology help reduce operational costs?
A3. It cuts waste, shortens changeovers, and lowers energy use.
Q4. Is this EFLEX the same as an EFLEX wire bending machine?
A4. No, this EFLEX is a Focus flexo press, not related to wire bending machines, but it does carry the latest in servo technology.
Q5. What kind of finishing options can be added to the EFLEX?
A5. It supports die-cutting, sheeting, lamination, cold foil, turn bars, and embellishment units.
Q6. Is local service and support available for this EFLEX machine?
A6: Yes, Prominent Tec in Bangladesh offers installation, training, service, and spare parts.
