High-end Micro-Computer Exposure Machine for Screen Printing
Unleash unparalleled precision and efficiency in your screen printing operations with the PT-H1 Micro-Computer Exposure Machine.
- Model name: PT-H1
- Payment Method: L/C at Sight or T/T in Advance
- Min. Order: 01
- Warranty: 12 Months
- Packaging: Standard Export Wooden Case
Share:
Request a quote for
Request a quote for
High-end Micro-Computer Exposure Machine for Screen Printing
Unleash unparalleled precision and efficiency in your screen printing operations with the PT-H1 Micro-Computer Exposure Machine.
- Model name: PT-H1
- Payment Method: L/C at Sight or T/T in Advance
- Min. Order: 01
- Warranty: 12 Months
- Packaging: Standard Export Wooden Case
Share:
Product Info

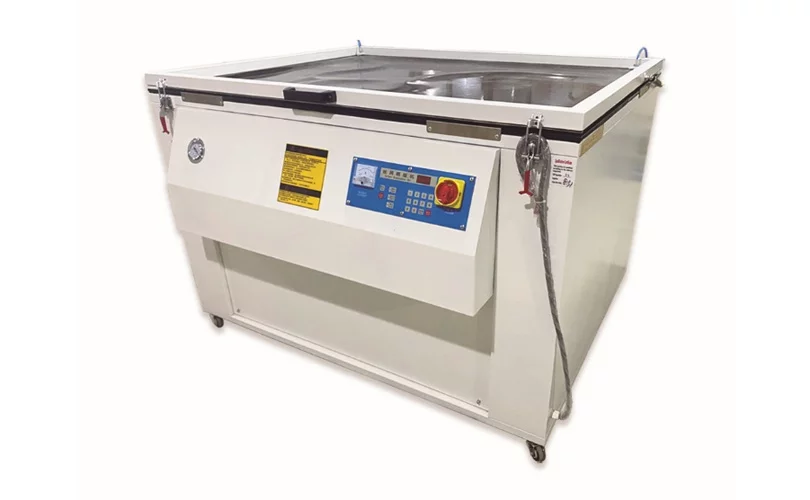

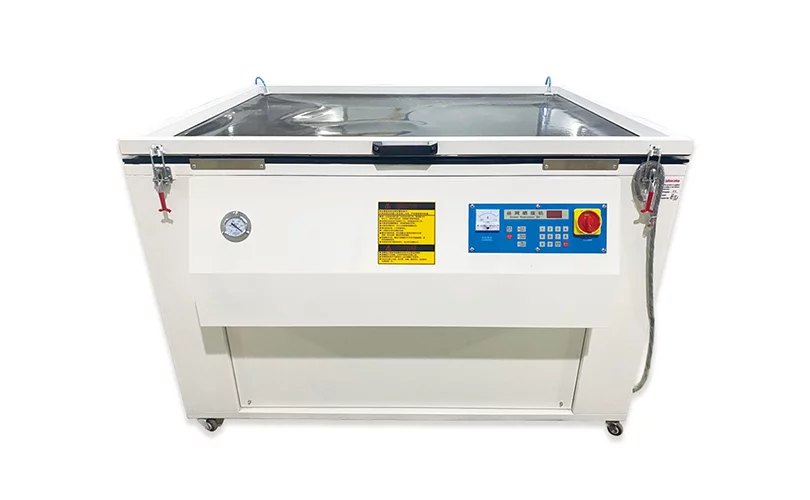

Micro-Computer Exposure Machine
Designed for the modern textile and garment industry in Bangladesh, this advanced exposure machine combines cutting-edge micro-computer control with robust UV exposure technology for making plate stencils that are consistent and high-quality, without the need for film positives. Experience faster production, reduced errors, and superior image resolution with this essential screen printing exposure machine. Elevate your print quality and streamline your workflow with the PT-H1, setting a new standard for screen exposure machine technology.Product Specification
| Model | Specification | Glass Size（mm） | Lamp Power | Max Frame Size | Electric Power | N.W. | Machine Dimension(mm) |
| PT-H101 | 900*1200 | 800*1000 | 2KW/3KW | 700*1000 | 380V，50Hz | 180KG | 1200*930*950 |
| PT-H102 | 1200*1500 | 1000*1300 | 2KW/3KW | 1000*1300 | 380V，50Hz | 230KG | 1500*1230*1000 |
Advantage & Features

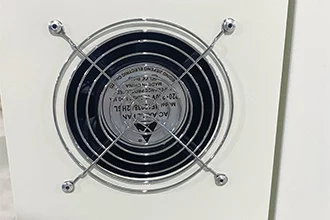

- Uses a special centrifugal cooling system for cooling the lamp to ensure it stays at a stable temperature. This allows the lamp to ensure stable performance and more reliable exposure results.
- Replaces the old traditional funnel-style design with a more efficient streamlined structure and an imported reflector design. This makes use of refraction of light to maximize light reflection, spreading light energy evenly across the glass surface—perfect for achieving high-quality multi-color and four-color plate making.
- The lamp can be restarted within about a minute after shutting down, ensuring the lamp energy can function well and enhance stability, which improves overall exposure efficiency.
- Features powerful screen vacuum adsorption and a high elasticity blanket to ensure perfect contact between the exposure machine and screen, eliminating exposure errors.

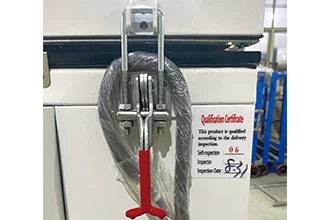

- Utilizes a pneumatic frame locking system for fast and secure placement of each
Applications
- Apparel Printing: Producing high-quality stencils for t-shirts, polo shirts, hoodies, and other garments, ensuring crisp designs and vibrant colors crucial for both local and export markets.
- Textile Printing: Ideal for creating intricate patterns on various fabrics, from fashion textiles to home furnishings, using a perfectly prepared exposure machine screen.
- Signage and Graphics: Manufacturing precise stencils for banners, posters, and other graphic applications requiring sharp lines and solid ink deposits using a scientific and reasonable approach to the refraction of light energy evenly.
- Industrial Screen Printing: Used in the production of electronic circuits and ceramic decals, often in automated lines where the printing press may feature a pneumatic negative pressure ink supply, and where accuracy is paramount.
- Promotional Products: Facilitating the rapid creation of stencils for bags, caps, and diverse promotional merchandise.
Specification
Micro-Computer Exposure Machine
Designed for the modern textile and garment industry in Bangladesh, this advanced exposure machine combines cutting-edge micro-computer control with robust UV exposure technology for making plate stencils that are consistent and high-quality, without the need for film positives. Experience faster production, reduced errors, and superior image resolution with this essential screen printing exposure machine. Elevate your print quality and streamline your workflow with the PT-H1, setting a new standard for screen exposure machine technology.Product Specification
| Model | Specification | Glass Size（mm） | Lamp Power | Max Frame Size | Electric Power | N.W. | Machine Dimension(mm) |
| PT-H101 | 900*1200 | 800*1000 | 2KW/3KW | 700*1000 | 380V，50Hz | 180KG | 1200*930*950 |
| PT-H102 | 1200*1500 | 1000*1300 | 2KW/3KW | 1000*1300 | 380V，50Hz | 230KG | 1500*1230*1000 |
Advantage & Features
Advantage & Features
- Uses a special centrifugal cooling system for cooling the lamp to ensure it stays at a stable temperature. This allows the lamp to ensure stable performance and more reliable exposure results.
- Replaces the old traditional funnel-style design with a more efficient streamlined structure and an imported reflector design. This makes use of refraction of light to maximize light reflection, spreading light energy evenly across the glass surface—perfect for achieving high-quality multi-color and four-color plate making.
- The lamp can be restarted within about a minute after shutting down, ensuring the lamp energy can function well and enhance stability, which improves overall exposure efficiency.
- Features powerful screen vacuum adsorption and a high elasticity blanket to ensure perfect contact between the exposure machine and screen, eliminating exposure errors.
- Utilizes a pneumatic frame locking system for fast and secure placement of each
Applications
Applications
- Apparel Printing: Producing high-quality stencils for t-shirts, polo shirts, hoodies, and other garments, ensuring crisp designs and vibrant colors crucial for both local and export markets.
- Textile Printing: Ideal for creating intricate patterns on various fabrics, from fashion textiles to home furnishings, using a perfectly prepared exposure machine screen.
- Signage and Graphics: Manufacturing precise stencils for banners, posters, and other graphic applications requiring sharp lines and solid ink deposits using a scientific and reasonable approach to the refraction of light energy evenly.
- Industrial Screen Printing: Used in the production of electronic circuits and ceramic decals, often in automated lines where the printing press may feature a pneumatic negative pressure ink supply, and where accuracy is paramount.
- Promotional Products: Facilitating the rapid creation of stencils for bags, caps, and diverse promotional merchandise.
Product Comparison
Product Comparison Table with Similar Products
| Feature | HJD-H1 Micro-Computer Exposure Machine | Traditional UV Exposure Unit | Basic Vacuum Exposure Unit |
| Control System | Micro-Computer Controlled (CTS) | Manual Timer / Analog | Manual Timer / Analog |
| Film Positives Required | No (Direct Imaging) | Yes | Yes |
| Resolution & Detail | Excellent (Sharp, Fine Lines) | Good (Limited by Film) | Good (Limited by Film) |
| Exposure Consistency | High (Automated Precision) | Moderate (Human Factor) | Moderate (Human Factor) |
| Setup Time | Fast (Digital Workflow) | Slower (Film Prep) | Slower (Film Prep) |
| Error Rate | Low (Automated) | Moderate to High | Moderate to High |
| Operational Cost | Lower (No Film, Less Waste) | Higher (Film & Waste) | Higher (Film & Waste) |
| Automation Level | High | Low | Low |
| Target User | Industrial / High-Volume Production | Small to Medium Operations | Start-ups / Small Shops |
Product Warranty
Warranty Period: 12 Months.
Warranty Terms: The Micro-computer Exposure Machine comes with a service warranty that covers its core electrical components, UV exposure system, and micro-computer control panel. Some items—like vacuum films, rubber sealing strips, and UV lamps—naturally wear out over time and are considered consumables, so they aren’t covered under the warranty. If any covered part stops working during the warranty period, our technicians will handle the repair or replacement, but customers will need to purchase any necessary spare parts. Please note that customers are responsible for all shipping costs when sending or receiving parts or equipment.
Technical & After Sales Service
To help you get the best results, we provide robust after-sales support, including:
- On-site installation, setup, and training to ensure smooth integration into your workflow.
- Field servicing and repair visits upon request for issues that require hands-on attention.
- Dedicated customer service channels, including 24/7 phone support for quick resolution of queries or concerns.
- Regional technical assistance (where available) to reduce machine downtime and maintain productivity.
Delivery Time
30-45 days. Please contact our sales team for precise delivery estimates for machine purchases.
Product Warranty
Product Warranty
Warranty Period: 12 Months.
Warranty Terms: The Micro-computer Exposure Machine comes with a service warranty that covers its core electrical components, UV exposure system, and micro-computer control panel. Some items—like vacuum films, rubber sealing strips, and UV lamps—naturally wear out over time and are considered consumables, so they aren’t covered under the warranty. If any covered part stops working during the warranty period, our technicians will handle the repair or replacement, but customers will need to purchase any necessary spare parts. Please note that customers are responsible for all shipping costs when sending or receiving parts or equipment.
Technical & After Sales Service
Technical & After Sales Service
To help you get the best results, we provide robust after-sales support, including:
- On-site installation, setup, and training to ensure smooth integration into your workflow.
- Field servicing and repair visits upon request for issues that require hands-on attention.
- Dedicated customer service channels, including 24/7 phone support for quick resolution of queries or concerns.
- Regional technical assistance (where available) to reduce machine downtime and maintain productivity.
Delivery Time
Delivery Time
30-45 days. Please contact our sales team for precise delivery estimates for machine purchases.
Company Info
Prominent Tec Company Information
Address: House #9, Block #A, Road #1, Niketon, Dhaka-1212, Bangladesh.
Business Type: Importer, Indenting & Distributor, Agents
Business Range: Printing Machinery & Consumables
Main Products: Textile Label Printing Machine, Garments Printing Machine, Digital Garments Printing Machine, Paper & Packaging Printing Machine, Printing Inks, Chemicals, Mesh, Squeegee, Ribbon, Flexo Photopolymer Plates, CTP Plate
About us: Established in 2010, Prominent Tec is a leading importer, indenting agent, and distributor specializing in advanced printing machinery and high-quality consumables. We represent renowned international brands such as Focus Label Machinery (UK), Ink Tec Inc. (USA), and Azon Printer (Croatia), among others, providing comprehensive printing solutions tailored to the garment, textile, packaging, plastic, and metal printing industries. With a dedicated team of professionals, robust warehouse facilities, and a commitment to exceptional service, Prominent Tec ensures reliable supply and technical support, helping our customers achieve efficiency and excellence in their printing operations.
What is a Micro-Computer Exposure Machine?
It’s a smart exposure unit that uses UV light to create stencils on screens for printing. Unlike manual units, it ensures sharp, high-quality results with digital precision.
How is the PT-H1 different from regular exposure machines?
The PT-H1 Micro-Computer Exposure Machine uses digital control and direct-to-screen (CTS) tech—no films needed. It’s faster, more accurate, and saves on materials.
Is it good for the garment industry in Bangladesh?
Yes! With fast operation, large screen capacity (up to 1200×1200mm), and consistent output, it’s perfect for high-volume textile printing.
What power supply does it need?
It runs on 3-phase AC 380V, 50Hz. PT-H101 uses 2.5 KW; PT-H102 uses 3.5 KW.
What type of UV lamp does it use?
PT-H101 has a 2 KW lamp, and PT-H102 uses a 3 KW lamp—both offer strong, even exposure.
What screens and emulsions are compatible?
It supports most standard mesh counts and light-sensitive emulsions used in textile printing.
How do I maintain it?
Keep the glass clean, check the vacuum and cooling systems, and replace the UV lamp as needed.
