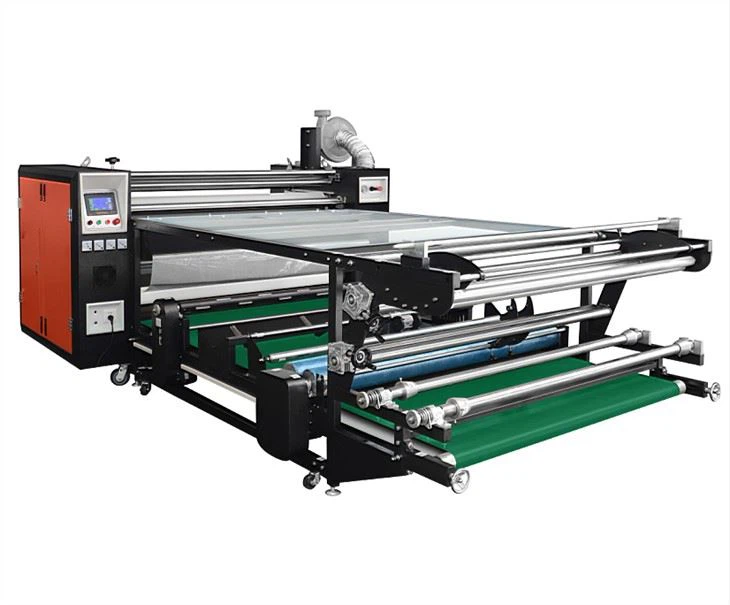

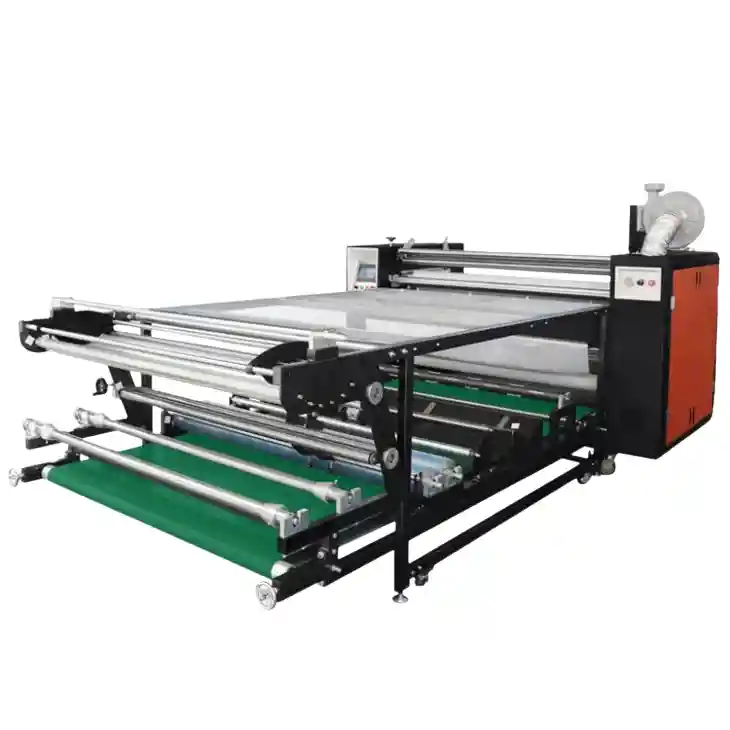

Heat Roller Transfer Machine for Sublimation Printing
High-speed, precise heat transfer printing and sublimation by heat roller transfer machine. Perfect in the textile and garment finishing of Bangladesh, offers the stable transfer quality of sportswear, fashion apparel, home textiles, and promotional materials.
Description
Heat Roller Transfer Machine Specification
| Model | PT-J901 | PT-J902 | PT-J903 | PT-J904 |
| Power Configuration | Single-phase two-wire 220V/50HZ | Three-phase four-wire 380V/50HZ | Three-phase four-wire 380V/50HZ | Three-phase four-wire 380V/50HZ |
| Power | 7KW | 20KW | 43KW | 60KW |
| Heating | Oil-base heating pipe | Oil-base heating pipe | Oil-base heating pipe | Oil-base heating pipe |
| Drum Diameter | 200mm | 420mm | 600mm | 800mm |
| Blanket width | 1150mm | 17330mm | 17330mm | 1960mm |
| Working Table area | 1000*1289 | 1510*1780 | 3000*1780 | 3000*2000 |
| Max working speed | 60-80m/h | 100-120m/h | 210-230m/h | 300-400m/h |
| Packing size | 1800*750*1200mm | 2640*1400*1200mm | 2640*1540*1570mm | 3100*1800*1800mm |
| Net weight | 320kG | 1500kG | 2500kG | 3500kG |
Advantage & Features

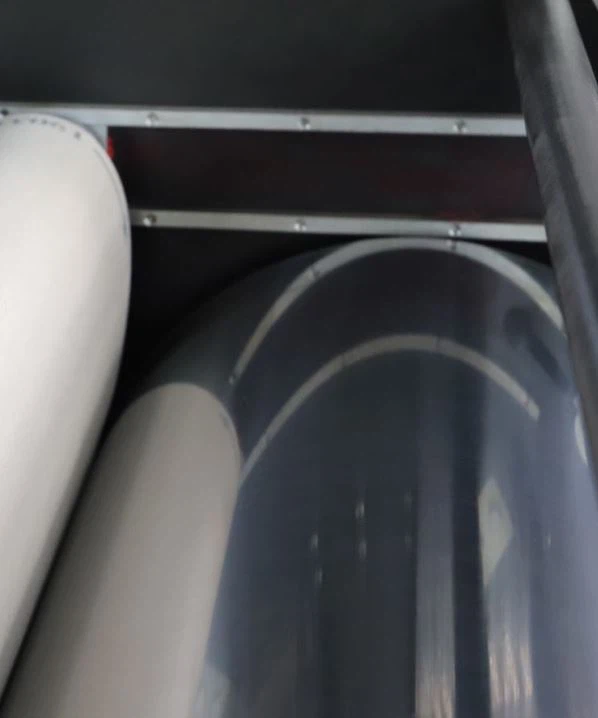

- Uniform roller thickness and temperature variation of ±1°C
- Teflon coated surface to avoid sticking of fabrics.
- Energy-efficient with stainless steel heating pipes and thermal oil

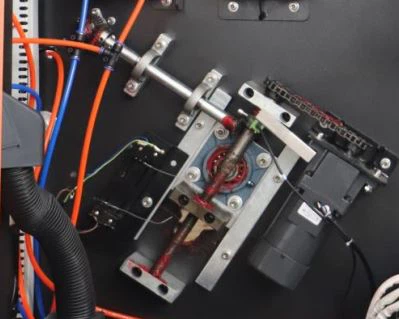

- Adjustable pneumatic compression to enhance control of pressure.
- Synchronous rod and pressure balance bar for even pressure
- Self-sustaining oil tank to facilitate easy maintenance and safety.

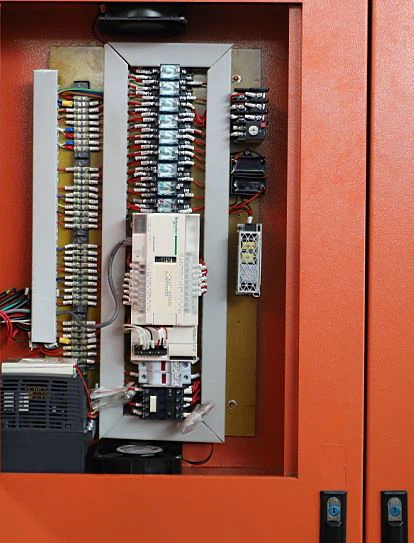

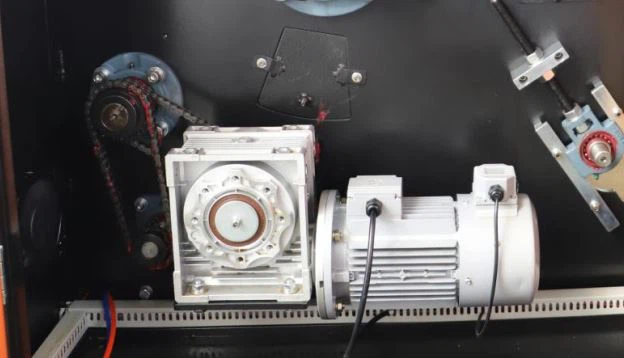

- Frequency converter to make smooth changes in speed.
Applications
Sportswear, activewear, fashion apparel, home textiles (curtains, bedding), soft signage, banners, promotional merchandise (bags, lanyards, caps), industrial fabrics, and large-format fabric printing for events, advertising, and retail.
