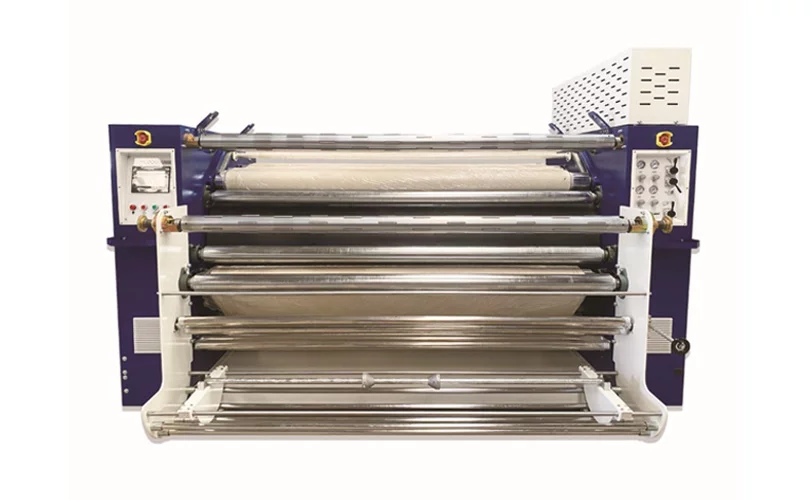

Sublimation Heat Transfer Machine
Sublimation heat transfer equipment to produce vibrant high quality prints on clothes and garments. Ideal in the garment and textile sectors of Bangladesh to generate sustainable designs with roll-to-roll with high volume.
| Model name |
PT-DP10 |
|---|---|
| Payment Method |
L/C at sight or T/T in advance |
| Warranty |
12 Months. |
Sublimation Heat Transfer Machine Specification
| Model | 1m | 800mm | 600mm | 600mm plus | 420mm | 270mm | 200mm |
| voltage
V |
380 | 380 | 380 | 380 | 380 | 380 | 220 |
| frequency
Hz |
50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Power
kw |
90 | 65 | 50 | 50 | 23 | 16 | 7 |
| Drum diameter
mm |
1000 | 800 | 600 | 600 | 420 | 270 | 200 |
| Wide of Roller
mm |
2080 | 2080 | 1860 | 2060 | 1860 | 1860 | 1200 |
| Blanket
mm |
1950 | 1950 | 1730 | 1950 | 1730 | 1730 | 1150 |
| Transfer printing width
mm |
1900 | 1900 | 1700 | 1900 | 1700 | 1700 | 1050 |
| Working Table area
mm |
Length customized×2000w | Length customized×2000w | 3000L×1780W | 3000L×1980W | 1510L×1780W | 2000L×1810W | 1000L×1280W |
| Heating | oil heating | oil heating | oil heating | oil heating | oil heating | oil heating | oil heating |
| Max running speed
m/h |
900 | 500 | 230 | 230 | 180 | 100 | 70 |
| Transfer speed
m/h |
500 | 300 | 150 | 150 | 120 | 60 | 40 |
| N．W
kg |
4500 | 3500 | 2000 | 2400 | 1500 | 1000 | 400 |
| Packing Sizes
mm |
3100*2500*2500 | 2900×2000×2000 | 2640×1750×1910 | 2640×1750×1910 | 2640×1600×1910 | 2680×950×1480 | 1810×800×1410 |
| Power Configuration | Three-phase four-wire | Three-phase four-wire | Three-phase four-wire | Three-phase four-wire | Three-phase four-wire | Three-phase four-wire | single phase |
Advantage & Features

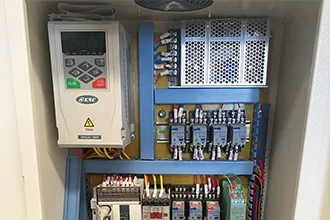

- Auto-correction of best performance in the blanket.

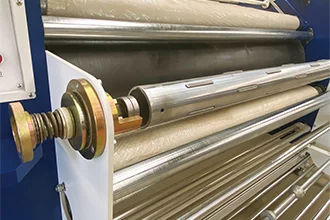

- Easy sublimation paper handling dual air expansion shafts.
- Fast printing speed of 600–700 meters per hour
- Damage prevention/fault detection inverter system.
- Digital delay switch in-built to facilitate operations.
Applications
Sportswear, fashion, casual wear, soft signage, display graphics, curtains, bed covers, cushions, promotional products, branded textiles
Warranty & Delivery
Warranty Period: 12 Months (Shipping cost to be borne by customer)
Technical & After Sales Service: We provide installation, training, and ongoing support including service visits and 24/7 phone assistance to keep your machine running smoothly.
Delivery Time: 30–45 days (Estimated). For exact timing, please contact our sales team.
Frequently Asked Questions
What materials can the PT-DP10 Roller Sublimation Heat Transfer Machine print on?
It prints on polyester and polyester-blend fabrics using sublimation inks for vibrant, long-lasting results.
How does oil heating compare to electric heating in a roller sublimation heat press?
Oil heating gives more stable, even heat, preferred for high-quality, continuous roll printing.
Is sublimation printing environmentally friendly?
Yes, it saves water, energy, and chemicals, though broader industry practices still raise environmental concerns.
What is sublimation heat transfer machine?
A sublimation heat transfer machine uses heat and pressure to transfer designs onto compatible products.
Can you use heat transfer paper for sublimation?
No, heat transfer paper is not suitable for sublimation. Sublimation requires special sublimation paper that allows the dye to penetrate the material when heated.
Does this product support customization?
Yes, many sublimation heat transfer machines support customization, allowing users to create unique designs tailored to their specific needs.
Is sublimation a profitable business?
Yes, sublimation can be a profitable business due to its low startup costs and high demand for customized products.
Can you use heat transfer paper for sublimation?
No, sublimation requires special sublimation paper, not regular heat transfer paper.
Does this product support customization?
Yes, many sublimation heat transfer machines support customization options.
Is local service and support available for this Sublimation Heat Transfer Machine?
Yes, Prominent Tec in Bangladesh offers installation, training, service, and spare parts.
