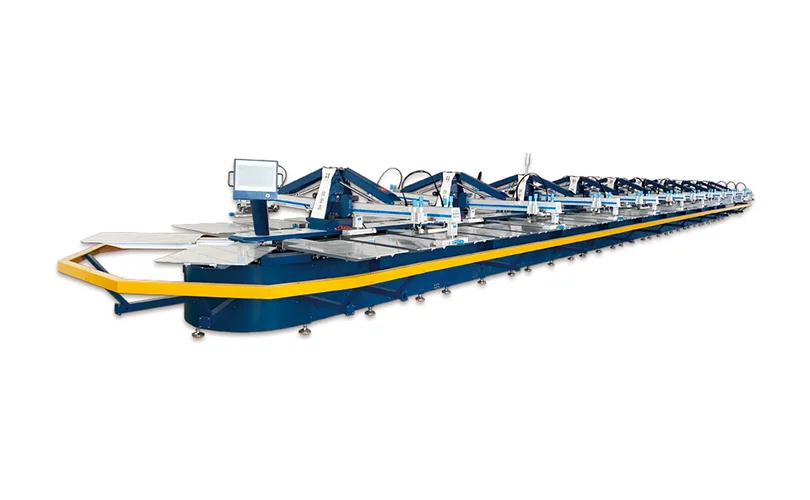

High-Speed Oval Automatic Screen Printing Machine in Bangladesh
- Up to 8 colors in a single continuous cycle
- Typical throughput of 600–1000 pieces per hour
- Servo-driven indexing — accurate registration across all colours
- Oval track accommodates more pallets and drying stations than a carousel
- Integrated flash-cure stations between colour heads
- Programmable job memory — fast changeover between repeat orders
- 12 months warranty, local installation, operator training and service from Prominent Tec’s Dhaka team
Oval Automatic Screen Printing Machine Specification
| (standard version) | |||||||||||||||
| Model | unit | 2S | 4S | 6S | 8S | 10S | 12S | 14S | 16S | 18S | 20S | 22S | 24S | 26S | 28S |
| Plate Quantities | (piece) | 10 | 16 | 22 | 28 | 34 | 40 | 46 | 52 | 58 | 64 | 70 | 76 | 82 | 88 |
| Printing Number | (color) | 2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 26 | 28 |
| Printing Size | (cm) | 63*86.5(The printing area:60*70) | |||||||||||||
| Max Frame | (cm) | External dimension: width 72* length 102 | |||||||||||||
| Min Frame | (cm) | Outside dimension: width 52* length 50 | |||||||||||||
| Machine length | (cm) | 712 | 935 | 1158 | 1381 | 1604 | 1827 | 2050 | 2273 | 2496 | 2719 | 2942 | 3165 | 3388 | |
| Machine width | (cm) | 330(Do not add flash drying) | |||||||||||||
| Machine Height | (cm) | 156 | |||||||||||||
| Maximum component size | (cm) | 271*150*156 | |||||||||||||
| Maximum component weight | (kg) | 420 | |||||||||||||
| Machine weight | (kg) | 1828 | 2583 | 3338 | 4093 | 4848 | 5603 | 6358 | 7113 | 7868 | 8623 | 9378 | 10133 | 10888 | |
| Air consumption | (m3/minute) | 0.05 | 0.1 | 0.15 | 0.2 | 0.25 | 0.3 | 0.35 | 0.4 | 0.45 | 0.5 | 0.55 | 0.6 | 0.65 | 0.7 |
| Air pressure Specification | 0.6Mpa/0.8Mpa(It must be dried and filtered) | ||||||||||||||
| Print Head Driver | (W) | Single head servo motor 400W | |||||||||||||
| Total power Consumption | (KW/hour) | 2.7 | 3.5 | 4.3 | 5.2 | 5.9 | 6.7 | 7.5 | 8.5 | 9.8 | 10.6 | 11.4 | 12.2 | 13 | 13.8 |
| Power supply parameters | Three phase 380V/50HZ | ||||||||||||||
| Production capacity | (pieces/hour) | 700-800 | |||||||||||||
| Optional scraper size | (cm) | 60,55,50,45,40,35,30,25,20(45 for standard) | |||||||||||||
| Optional ink return knife size | (cm) | 61,56,51,46,41,36,31,26,21(46 for standard) | |||||||||||||
| No chain drive, setting accuracy ±0.02mm | |||||||||||||||
Oval versus carousel — the throughput difference
A round carousel press has print heads arranged in a circle around a central hub, which physically limits how many stations and pallets fit. An oval press runs pallets around an elongated track, so it accommodates more print heads, more pallets and more drying stations in the same cycle. The practical result is throughput: a well-run oval typically produces 600–1000 pieces per hour against 200–300 on a carousel.
For a Bangladesh RMG factory printing large export orders, that difference decides whether printing is a bottleneck or not. The buyer for this machine is a factory with sustained high-volume printed-garment contracts — where the press runs most of the shift, most days. Below that utilisation, our Round Shape Automatic Screen Printing Machine is a better-matched investment.
Applications
This machine is used by large garment factories and dedicated print houses producing high-volume printed apparel for export — T-shirts, hoodies, sportswear and fashion tops for international buyers. It handles the multi-color front and back prints that branded export orders typically specify, at volumes where manual and carousel printing cannot keep pace with shipping schedules.
Factories running an oval press usually pair it with our High Grade Tunnel Dryer Machine for final curing at matching throughput, and with the Automatic Emulsion Coating Machine and stretching equipment to keep screen preparation feeding the press. Prominent Tec can quote the full line together.
For a workshop comparing high-volume screens with short-run digital transfers, the DTF versus screen-printing guide explains where each workflow fits.
Frequently Asked Questions
How many pieces per hour can an oval press realistically produce?
Typically 600–1000 pieces per hour depending on color count, design complexity and operator experience. Simple one and two-color work runs at the higher end; complex eight-color prints with multiple flash cures run slower.
How does an oval compare to buying two carousel presses?
One oval usually beats two carousels on floor space, operator count and registration consistency across colors. Two carousels give redundancy if one goes down and can run two different jobs at once. For sustained single high-volume contracts, the oval is normally the better choice.
What factory power supply does it need?
It requires a three-phase industrial supply. Exact rating depends on color count and number of flash-cure stations. We provide full electrical specifications with the quotation so your electrician can prepare the connection before delivery.
What is the delivery and installation timeline?
30–45 days from order confirmation to Chittagong port, plus 10–14 days for inland transport, mechanical installation, electrical connection, calibration and operator training.
What training is included?
Three to five days of operator and maintenance training after installation, covering job setup, screen registration, flash-cure settings, changeover and preventive maintenance. Additional training days available on request.
