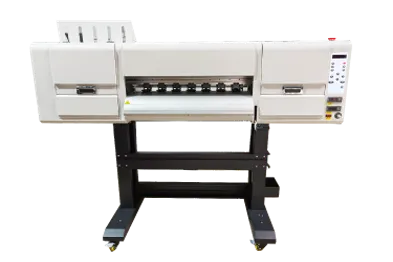

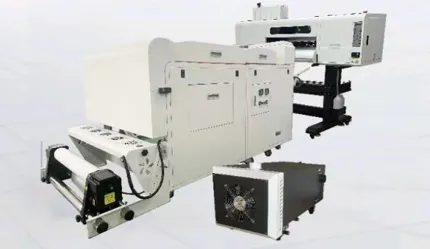

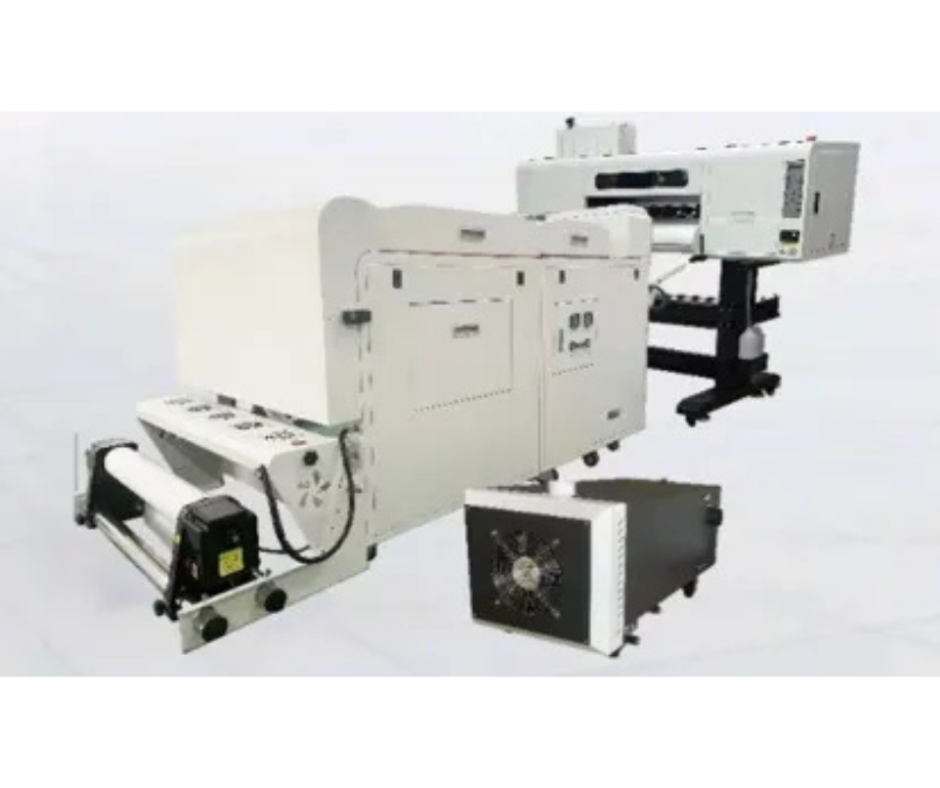

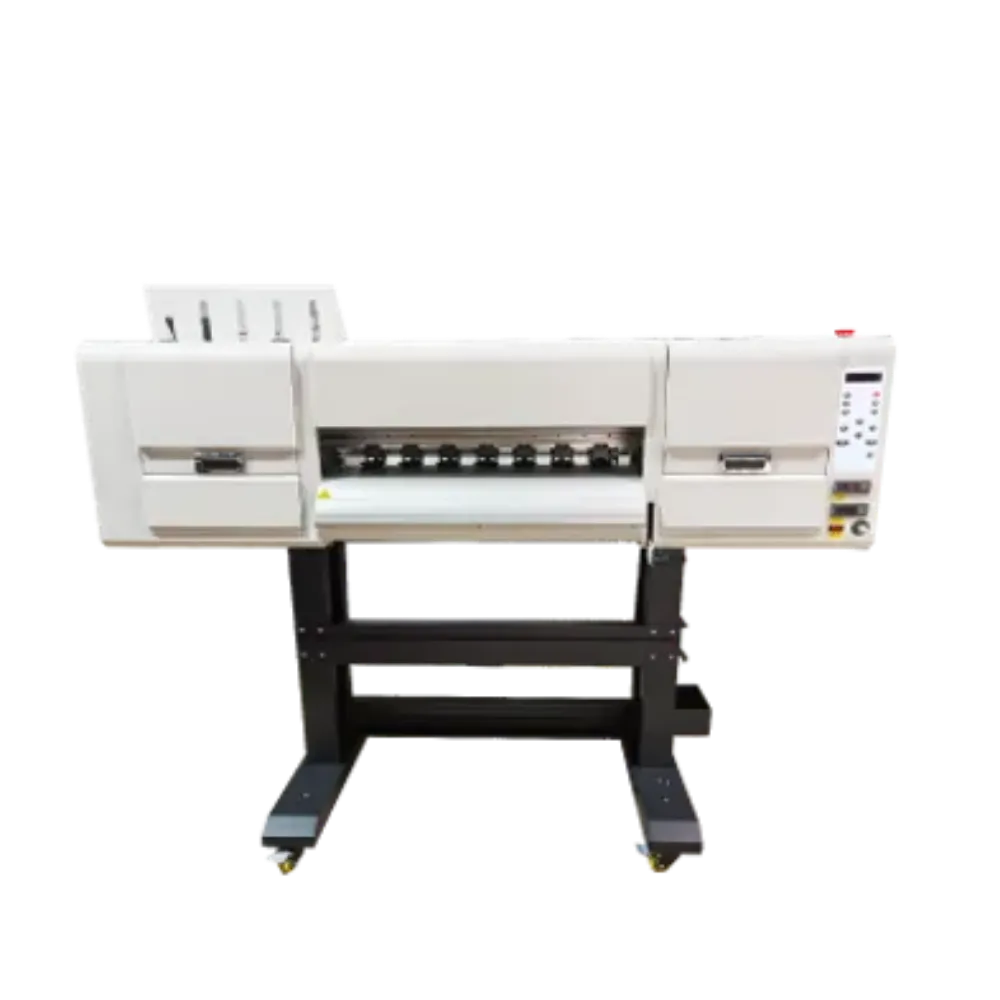

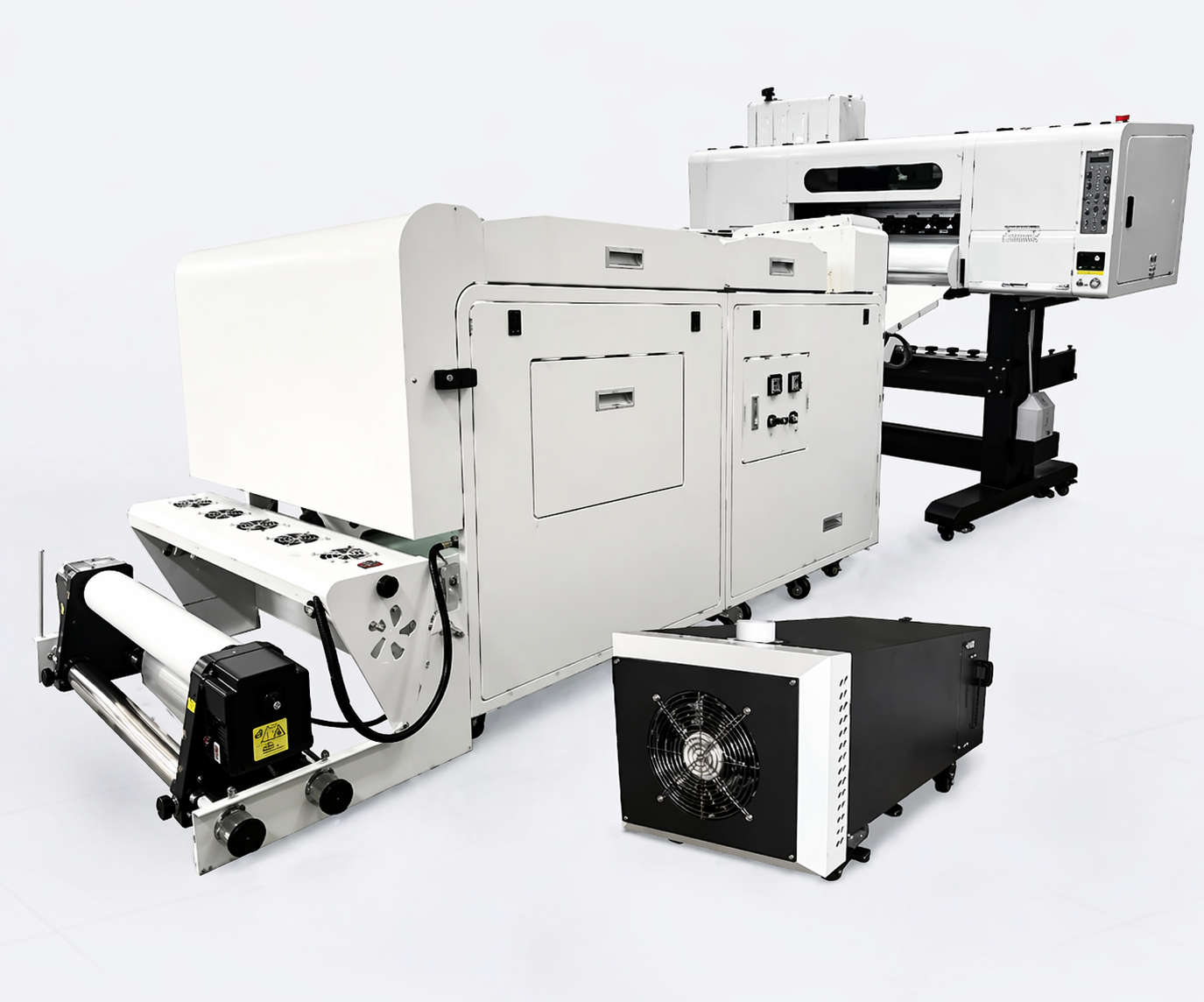

DTF Printer: Direct to Film Transfer Printing Machine
DTF Printer Machine to print designs on film and transfer it to fabric. Perfect to use in Bangladesh garment industries to deal with custom orders and quick turnaround and quality print.
| Model name |
P704-i3200, HG-705, A1084 |
|---|---|
| Payment Method |
L/C at Sight or T/T in Advance |
| Min. Order |
01 |
| Warranty |
12 Months |
| Packaging |
Standard Export Wooden Case |
Product Specification
| Item Model | P704-i3200 | HG-705 | A1084 |
| Print head | Using Epson Print head, including 400 nozzles/row * 8 lines * 4, high quality up to 1800dpi | ||
| Print resolution/speed | 4pass: 19–27㎡/hour
6pass: 13–18㎡/hour |
||
| Ink Sort | Water Based Ink/ Eco Solvent Ink, Water Based Ink, dye ink, Sublimation ink, DYE / DYEY / RZY / DTF | ||
| Capacity | 5 Colors: 1.5L * 5/color; 4 Colors: each 1.5L, total 6L; 5 Colors: each 1.5L, total 7.5L | ||
| Media Maximum Width | 650mm | ||
| Thickness | 1.5mm to 8mm adjustable | ||
| Max Roll Weight | 75KG | ||
| Sort | PP Synthetic paper, vinyl sheet, film, coated paper, Acid Proof paper banner, canvas etc., Adhesive Vinyl sheet, Banner PET and so on | ||
| High Printing quality | Three intelligent eclosion print function; VSD technology | ||
| Media Heater | Pre/Post Heater (Can be controlled separately) | ||
| Interface | RJ45 network port | ||
| RIP Software | Maintop V5.3 5.5, Photoprint, Topaz, Seeget Wasatch | ||
| Power | AC110V+/-10%, AC220V+/-10%, 50/60HZ | AC110V+/-10%, AC220V+/-10%, 50/60+/-HZ | 215W |
| Operation Environments | Temperature: 20°C–35°C, Humidity: 35%RH–65%RH | Temperature: 20°C–35°C, Humidity: 35%RH–65%RH | |
| Powder | Input 200W, Pre/Post heating 600W, Draw 200W, Heat 600W back and forth | 9000W | |
| Size (H x W x H) | 1730*850*1500mm | 3010*1200*1050mm | 830*445*420mm |
| Height of Worktable | 1000mm | ||
| Dimensions of Packing (L x W x H) | L1800 x W700 x H850mm | 890*480*440mm | |
| Net Weight | 135kg | 32KG | |
| Gross Weight | 190kg | 40KG |
Advantage & Features
- Complete automatic temperature control induction.

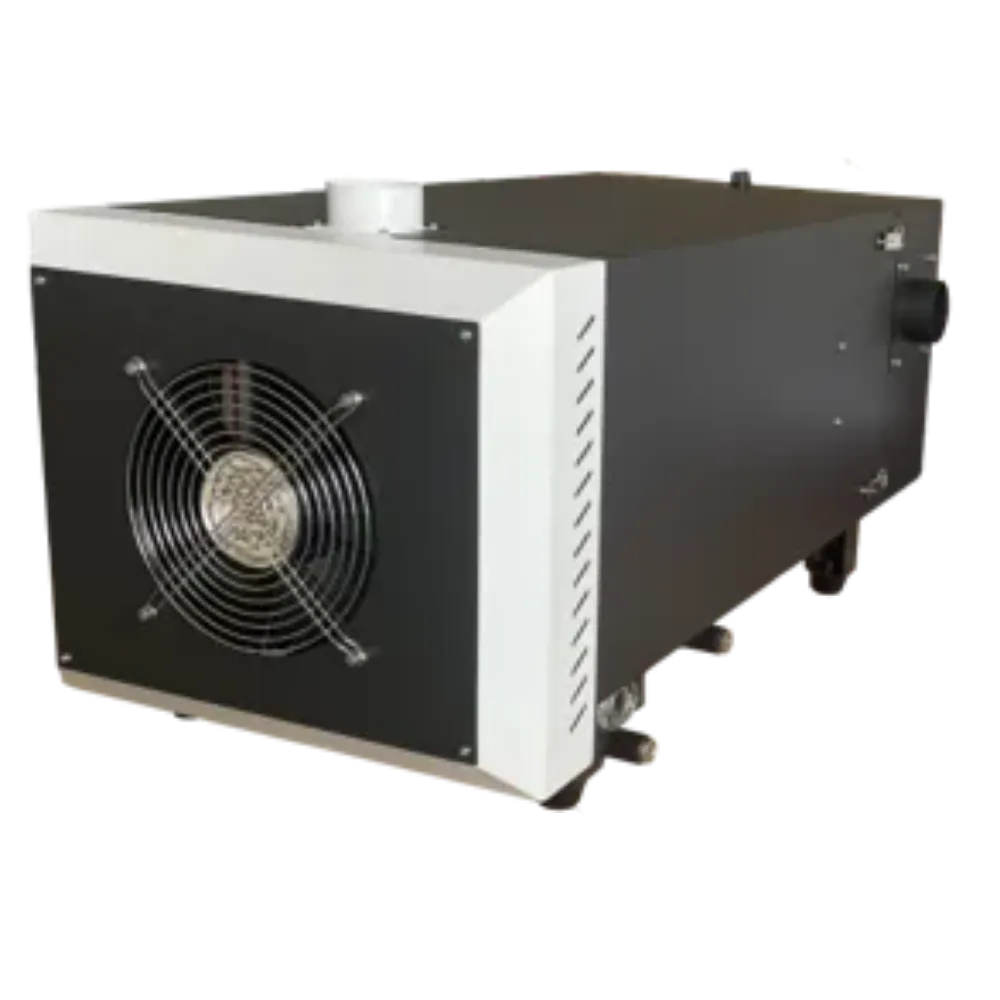

- Smoke Cleaning aids in environmental protection.
- Automatic power-off protection
- The universal wheel is easily transportable and the foot cup is fixable.
- Mesh belt automatic transmission system, convenient printing and proofing.

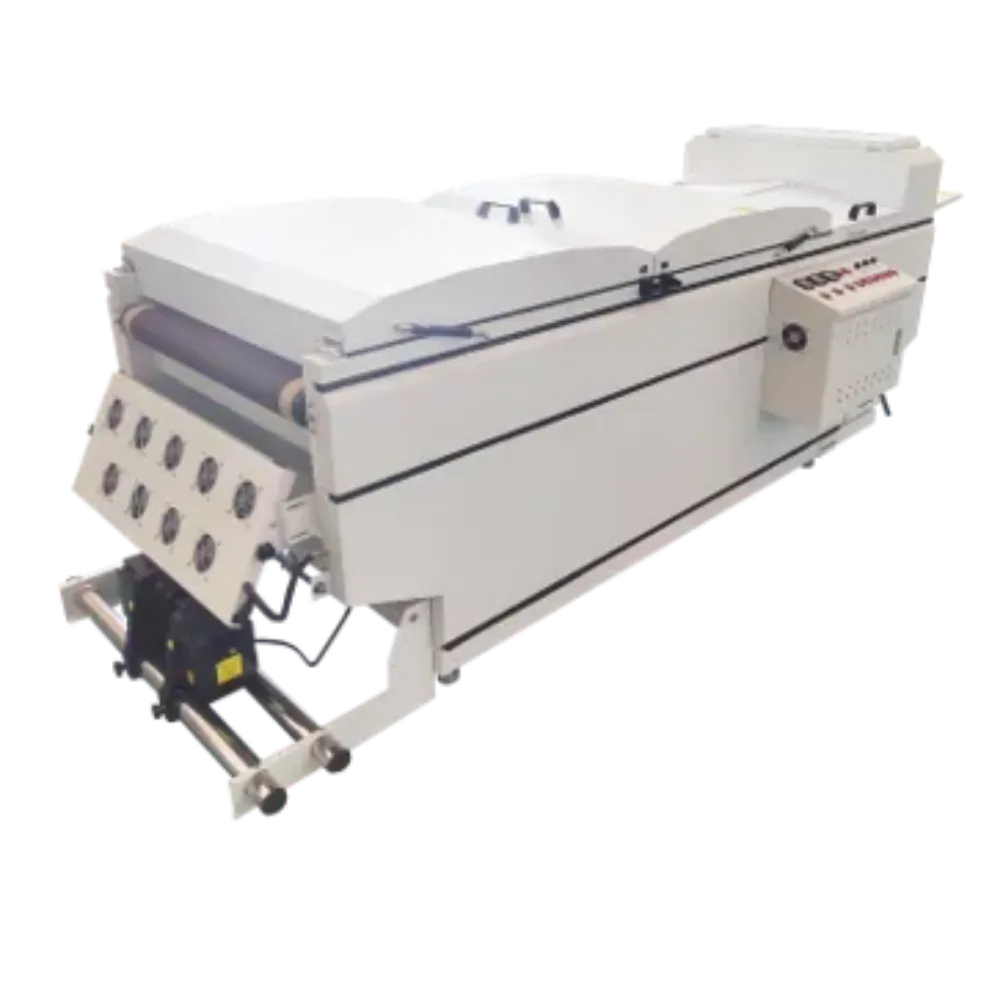

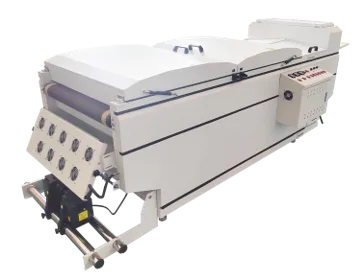

- Automatic powder feeding system，Automatic winding system
- Make winding more stable, Suction platform function.
- Improve uniformity of powder spreading, decrease powder adding rate and waste powder, use powder blocking fixed plate.
Applications
T-shirts, hoodies, caps, sportswear, uniforms, tote bags, hats, keychains, water bottles, curtains, pillowcases, bed sheets, towels, bags, shoes
Warranty Period: 12 Months (Shipping cost to be borne by customer)
Technical & After Sales Service: We provide installation, training, and ongoing support including service visits and 24/7 phone assistance to keep your machine running smoothly.
Delivery Time: 30–45 days (Estimated). For exact timing, please contact our sales team.
Frequently Asked Questions
1. What exactly is the DTF (Direct-to-Film) printing process?
DTF printing uses a DTF printer to print designs on PET film, which are powder-coated, heat-cured, and heat-pressed onto fabric to achieve high-quality results on many materials.
2. What types of fabric and materials can this DTF printer be used on?
A DTF printer works on almost all fabrics, including cotton, polyester, blends, nylon, leather, silk, denim, and both light and dark garments.
3. How durable are the prints produced by the DTF printing machine?
DTF printer prints are long-lasting, resistant to cracking and fading, and can endure 30–50+ washes when properly applied.
4. How does DTF printing compare to DTG (Direct-to-Garment) printing?
A DTF printer requires no pre-treatment, supports more fabric types, and produces vibrant prints on dark garments using white ink.
5. What are the essential components and software needed to run the DTF printer?
To run a DTF printer, you need the printer, DTF inks, PET film, adhesive powder, a heat press, and RIP software like Maintop, Photoprint, or Wasatch.
6. What after-sales service and support do you provide for the DTF printing machine?
We provide DTF printer installation, training, service support, repair visits, and 24/7 customer assistance.
